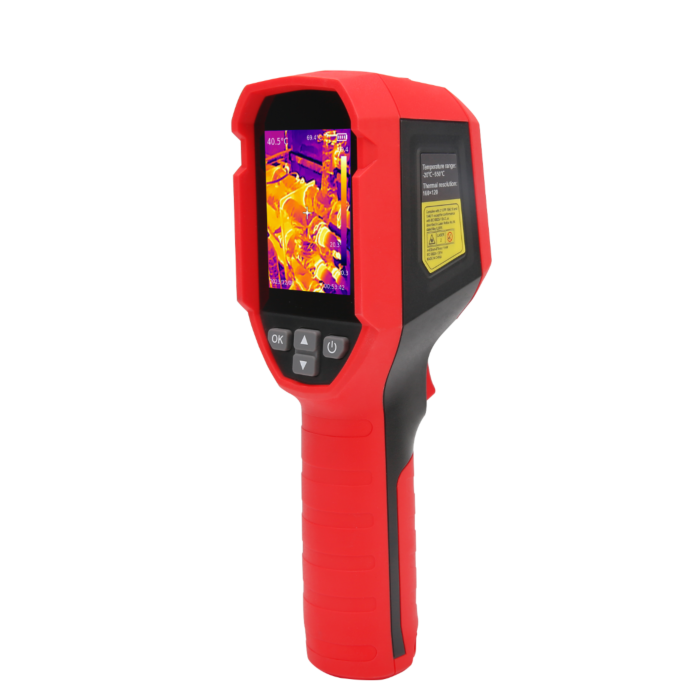

UNI-T UTi716S termokamera

UTi716S is a Cost-effective Thermal Camera equipped with a 12μm infrared detector with 160×120 pixels and 2MP digital camera, combined with Super resolution function and self-developed T-Mix auto-adaptive dual-light fusion algorithm technology for gernerating high-definition IR images with visible details.

Its extended temperature measurement range and the built-in LED light & laser pointer meet more application scenarios.

4-button and light-weight design make inspection work easily. Widely used in HVAC, Automotive inspection and electric utility.

Features :
160×120 pixels / 12μm infrared detector
Temp. measurement range from -20℃ to 550℃
2MP digital camera
Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology
Super resolution is supported
Multi-languages OS
With LED light & Laser pointer
IP54 and wistand the drop of 2m height

Technical Data

• Display: 2.4” TFT (320×240)
• IR resolution(Pixels): 160×120, 320×240 with Super resolution.
• Spectral range:8~14µm
• Pixel size: 12µm
• Frame rate ≤25Hz
• Thermal sensitivity(NETD) ≤50mK
• Field of view(FOV) 40°(H) × 30°(V)
• Spatial resolution(IFOV) 4.62mrad
• Temperature measurement range -20℃~550℃
• Accuracy ±2℃ or ±2% whichever is greater
• Digital camera resolution 2MP
• 2600mAh rechargeable Li-ion battery, ≥6 hours Operating time
• USB Type-C
• 32GB Internal Storage
• Weight 600g
• Dimension: 197mm×72mm×60mm
• IP54 & 2m drop proof Protection

Functions

• Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC
• Image modes: Thermal, Visual image, Fusion (T-Mix), PIP
• Hi/Lo temperature alarm: LCD animation, LED flashlight, Buzzer
• Hi/Lo temperature tracking
• Laser pointer, LED lighting
• Analysis software for PC
