UNI-T UTi120MS termokamera for iPhone

Skriv en produktanmeldelse

kr 2 590,00 kr 2 072,00

Varenummer

101272

Professional thermal camera for iPhone.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detaljer

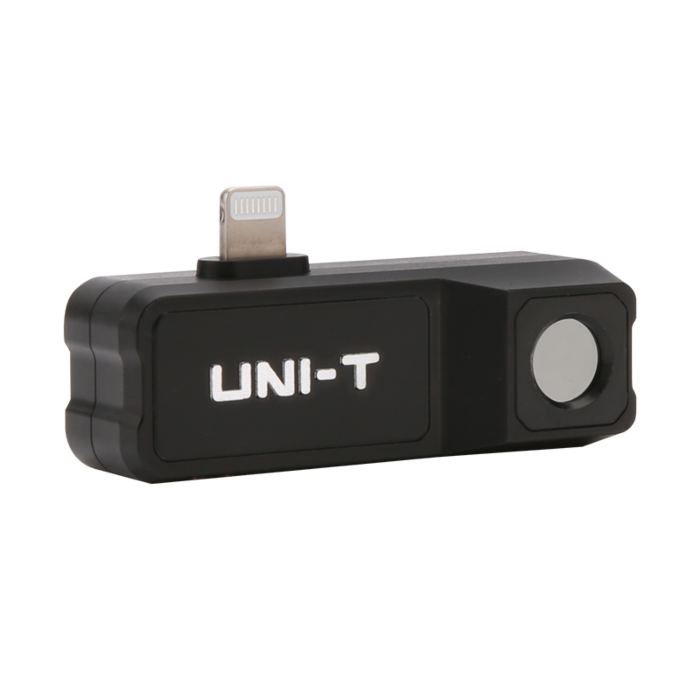

UTi120MS is a professional smartphone thermal camera module for iPhone, which is compact, portable, and easy to operate through iPhones. UTi120MS provides clear image with a fast response and can detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, engineers, contractors and builders etc.

Features :

IR resolution: 120×90
Temperature measurement range: -20℃to 400℃ / -4℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
Image capture
Video recording
Image modes: Thermal, Fusion, PIP
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
Phone: iPhone (USB LightningType-C interface)
1m extension cable
2m drop proof

Technical Data
IR resolution (Pixels)	120×90
Field of view(FOV)	50°×38°
Thermal sensitivity(NETD)	≤60mK @25℃
Spatial resolution(IFOV)	7.3mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus free
Lens focal length	2.28mm
Temperature measurement range	-20℃ ~ 400℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes	Thermal,Fusion,PIP
On screen analyzer	6 Points/6 Lines/6 Rectangles/6 Circles
Hi/Lo temperature alarm	√
Video recording	√
General Characteristics
USB	Lightning
Drop proof	1m
Image/Video storage format	JPEG, MP4
Certificates	CE,UKCA,FCC,RoHS,MFi
Product net weight	25g
Product size	53mm×18.2mm×18.5mm
Packing Details
Standard accessories	English manual, Documents download operation guide card

Mer informasjon

Mer informasjon
Produsent	UNI-T
Produktnr	UTi120MS
