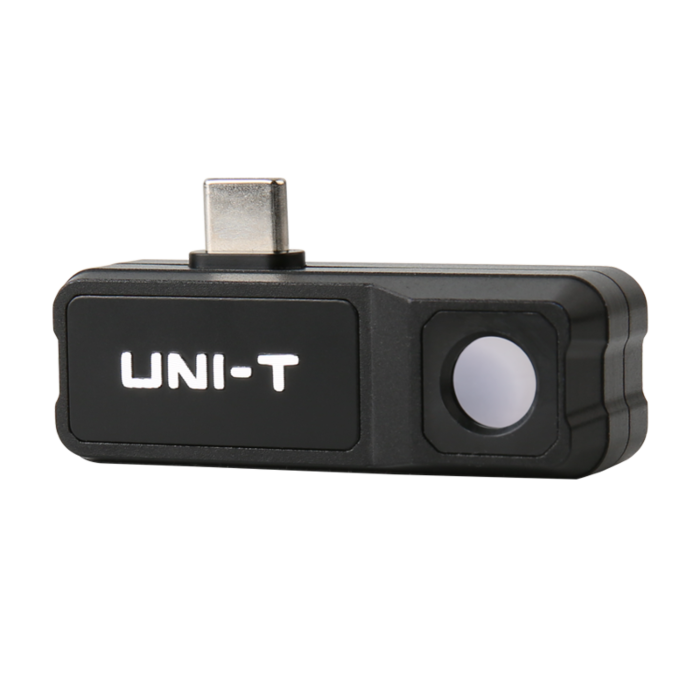

UNI-T UTi120M USB-C termokamera for Android

kr 2 475,00 kr 1 980,00
Varenummer
101164

Professional thermal camera for Android smartphones.

UNI-T UTi120M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120Mobile provides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module.

Features :

  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles
  • Image capture
  • Video recording
  • Image modes: Thermal, Fusion, PIP
  • Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: Android (USB Type-C interface)
  • 1m extension cable
Technical Data
IR resolution (Pixels) 120×90
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK  @25℃
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range  -20℃ ~ 400℃
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable
(0.95 default)
Functions
Color palettes 7
(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes Thermal,Fusion,PIP
On screen analyzer 6 Points/6 Lines /6 Rectangles/6 Circles
Auto alarm for high/low temperature
Video recording
General Characteristics
USB Type-C
Drop proof 2m
Image/Video storage format JPEG
Certificates CE,UKCA,FCC,RoHS
Product net weight 25g
Product size 53mm×18.2mm×18.5mm
Mer informasjon
ProdusentUNI-T
ProduktnrUTi120Mobile
