UNI-T UTi260B termokamera
Spesialpris kr 3 525,00 kr 2 820,00 Veil. pris kr 4 780,00
Varenummer
101166

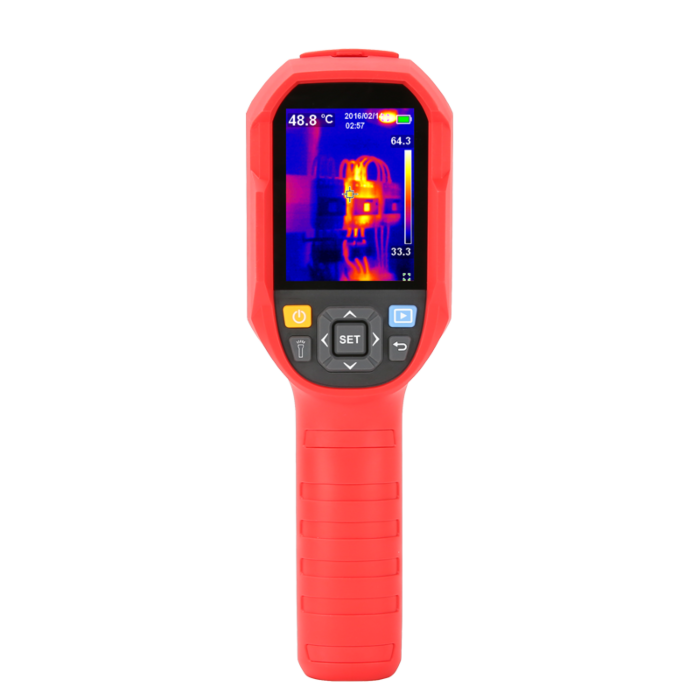

UNI-T UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
- Durable and user-friendly
- 8” TFT display screen (320×240 Pixels)
- IR resolution: 256×192
- Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On screen analyzer: Point 3
- Image capture
- Image modess: Thermal,Visual image,Fusion,PIP
- Digital camera resolution: 640×480
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- LED flashlight
- PC software analysis and real-time image projection)
- Rechargeable Li-ion battery
- 1/4”Tripod Mounting Hole
- IP65
- 2m drop proof
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 2.8” TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤50mK |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Focus | Focus Free |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC) |
| Image modes | Thermal,Visual image,Fusion,PIP |
| On screen analyzer | Point 3 |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon,LED flashlight |
| PC software analysis | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 6 hours |
| USB | Type-C |
| IP rating | IP65 |
| Drop proof | 2m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,RoHS |
| Product net weight | 910g |
| Product size | 236mm×75.5mm×86mm |
| Produsent | UNI-T |
|---|---|
| Produktnr | UTi260B |
