UNI-T UTi712S termokamera

kr 2 380,00 kr 1 904,00
Varenummer
101165

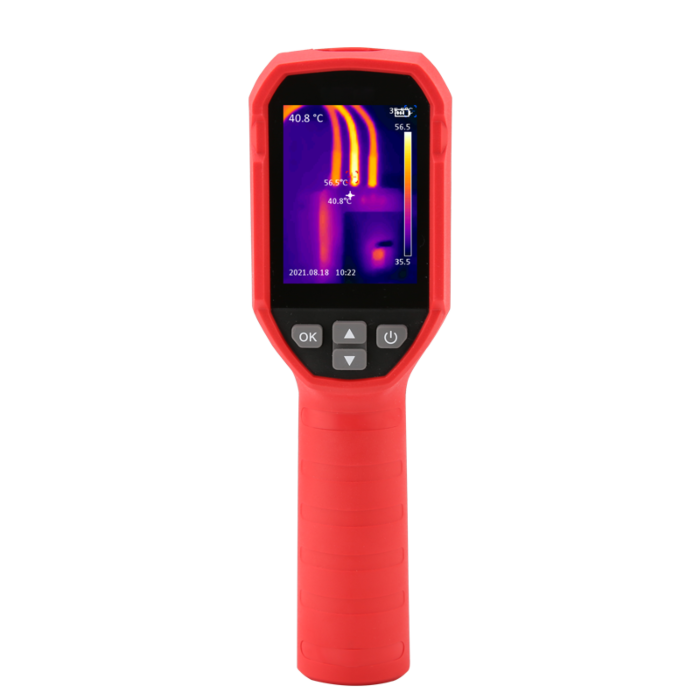

UNI-T UTi712S is a cost-effective and highly recommendable thermal camera with good and solid build. Some special features include: temperature compensation (allows more accurate readings under different temperature environment), laser pointer, longer battery operation time (more than 9 hours). This rugged thermal camera has IP54 protection and can withstand a 2 meter drop.

Features :

  • 4” TFT Screen (320×240 Pixels)
  • IR resolution: 120×90
  • Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • Image capture
  • Color palettes: 6(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
  • Buzzer alarm
  • Laser pointer
  • LED flashlight
  • PC software analysis
  • Rechargeable Li-ion battery
  • 1/4”tripod mounting hole
  • IP54
  • 2m drop proof



Technical Data
IR resolution (Pixels) 120×90
Display 2.4” TFT LCD (320×240)
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Focus Focus Free
Temperature measurement range  -20℃~400℃
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable
(0.95 default)
Functions
Color palettes 6
(White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava)
Image modes Thermal
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
PC software analysis
Laser pointer
General Characteristics
Battery Fixed Li-ion battery (3.7V 2600mAh)
Battery operation time  ≥8 hours
USB Type-C
IP rating IP54
Drop proof 2m
Storage 16GB Micro SD card
Image/Video storage format BMP
Certificates CE,UKCA,FCC,RoHS
Product net weight 310g
Product size 197mm×72mm×60mm
Standard accessories Hand strap, Micro SD card, Type-C USB cable, English manual
Mer informasjon
ProdusentUNI-T
ProduktnrUTi712S
