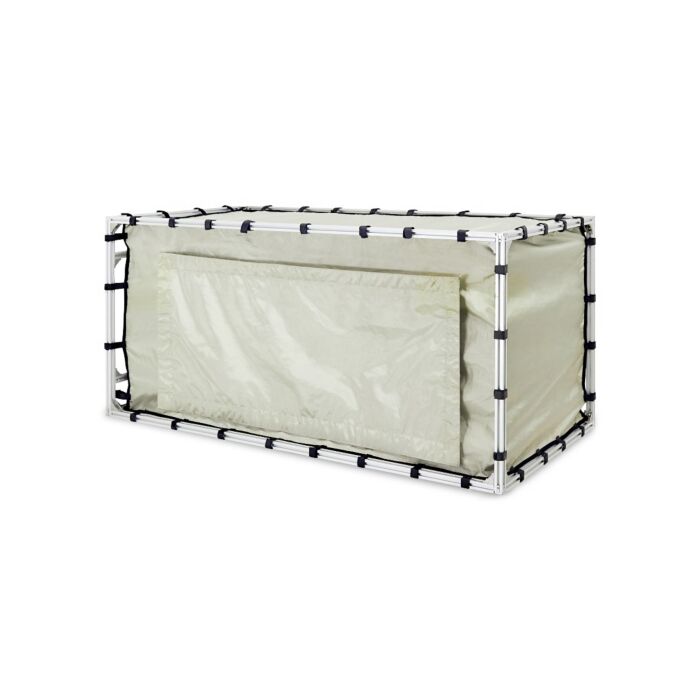

Tekbox TBST-86/49/45/2-B Skjermet telt

The TBST-B line of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements.
With a sizes of 86 cm x 49 cm x 45 cm the tent can accommodate most Tekbox pre-compliance test equipment such as LISNs or TEM-cells(ТВТС0, ТВТС1, ТВТС2).
The shielded tent are made of two layers of conductive fabrics. It is supported by rigid aluminium profiles.
The filter panel at the side provides a 240V/10A mains AC filter, two general purpose 240V/25A AC/DC filters and four coaxial feed through adapters with screw caps.
The access opening is sealed with conductive Velcro tape.

• Outer dimensions: 86 cm x 49 cm x 45 cm
• Opening dimensions: 40 cm x 22 cm
• Frame: 20 mm x 20mm extruded aluminium profiles
• Shielding: 2 layers of conductive fabrics
• Seal: conductive Velcro tape
• Suspension: Velcro straps
• Filter panel:

  • 1 x 240V/10A AC filter IEC socket
  • 2 x 240V/25A DC filter cables with female Banana couplers
  • 3 x N- female feed through connector with screw caps
  • 1 x BNC-female feed through connector
• Internal AC Socket: pigtail cable with detachable female Schuko
• Attenuation: up to 50 dB in the range 10 MHz to 6 GHz
• Weight: 10.8 kg

Download Tekbox TBST86/49/45/2-B datasheet / manual
