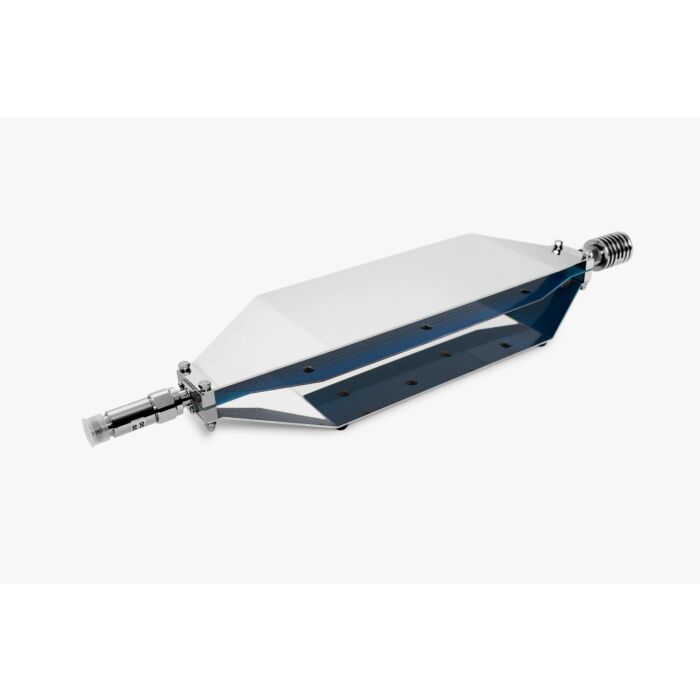

Tekbox TBTC0 OPEN TEM Cell 28 mm

kr 6 375,00 kr 5 100,00
Varenummer
100295

Open TEM Cell for EMC Pre-Compliance Testing, 28mm Septum.

Open TEM Cell for EMC Pre-Compliance Testing, 28mm Septum

Bestillingsvare.

Lengde: 390 mm
Vidde: 100 mm
Høydet: 62 mm
Septum høyde: 28 mm
Rektangulært område under septum: 19 cm x 7 cm x 2,8 cm

TEM cell connectors: N-female
Nominal cell impedance: 50 Ohm
Wave impedance: 377 Ohm
Maximum RF input power: 10W
Input return loss: S11 up to 3,15GHz < -15dB
Transmission loss: up to 3 GHz < 3dB, up to 6 GHz < 4dB


DC-Block 50V-6GHz-N
Connectors: N-Male/Female
Nominal impedance: 50 Ohm
Max. continuous RF power: 2W
Max. continuous RF voltage: 50V RMS
Frequency: 500kHz to 6 GHz
VSWR: ≤ 1.2

RF-Termination 50Ω-6GHz-10W-N
Connector: N-Male
Nominal impedance: 50 Ohm
Max. continuous RF power: 10W
Frequency: DC to 6 GHz
VSWR: ≤ 1.2
Third order intermodulation: ≤ 120 dBc

Mer informasjon
ProdusentTekBox
ProduktnrTBTC0
