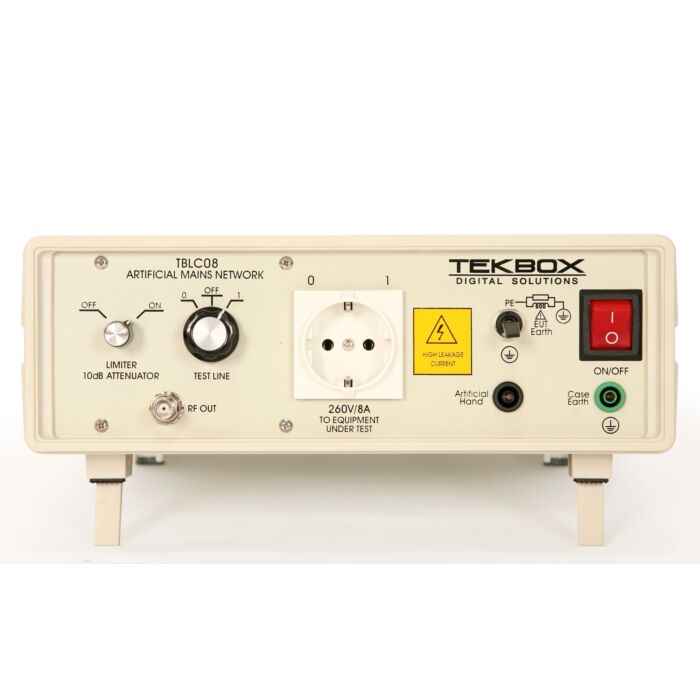

Tekbox TBLC08 50uH 8A AC LISN

kr 9 210,00 kr 7 368,00
Varenummer
100303

50uH AC LISN, CISPR16 standard.

The TBLC08 50uH LISN is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard.

The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V.

Conducted noise can be measured on the phase and on the neutral conductor.

The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection.
The device is available with country-specific DUT connectors.



  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
  • Air core inductors
  • Line voltage: max. 240V / 50 – 60 Hz, CAT ‖
  • Max. current: 8A @ 23°C
  • DUT socket: country specific
  • Measurement connector: 50 Ω BNC
  • Power connector: IEC 60320 C13
  • Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
  • Safety: Safety Class I, IEC 1010-01
