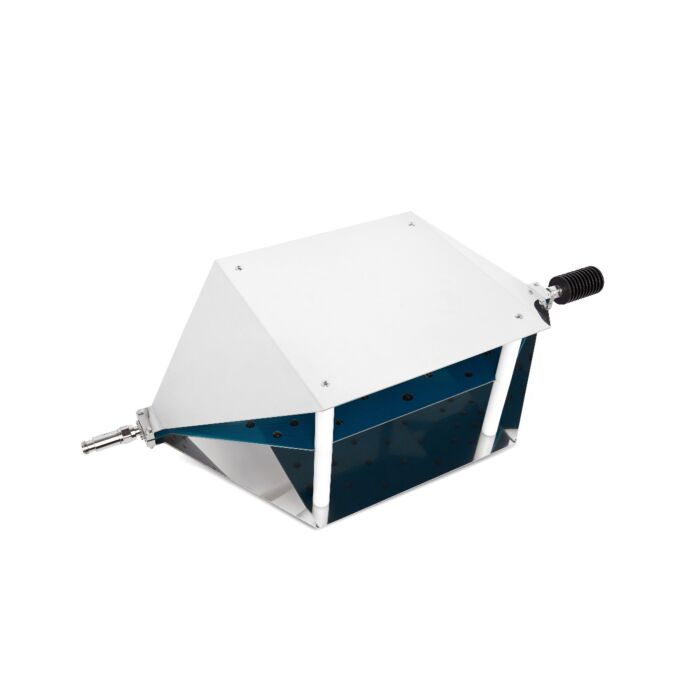

Tekbox TBTC2 OPEN TEM Cell 100 mm

kr 11 340,00 kr 9 072,00
Varenummer
100297

Open TEM Cell for EMC Pre-Compliance Testing, 100mm Septum.

Open TEM Cell for EMC Pre-Compliance Testing, 100mm Septum

Bestillingsvare.

Lengde: 636 mm
Vidde: 300 mm
Høyde: 205 mm
Septum høyde: 100 mm

Rektangulært område under septum: 23 cm x 28 cm x 10 cm

TEM cell connectors: N-female

Nominal cell impedance: 50 Ohm
Wave impedance: 377 Ohm
Maximum RF input power: 25W
Input return loss: S11 up to 800MHz < -15dB, up to 1.5 GHz < -10dB, up to 3GHz < -8dB
Transmission loss: up to 800MHz < 1 dB, up to 1.15 GHz < 3dB


RF-Termination 50Ω-3GHz-25W-N
Connector: N-Male
Nominal impedance: 50 Ohm
Max. continuous RF power: 25W
Frequency: DC to 3 GHz
VSWR: ≤ 1.2
Third order intermodulation: ≤ 120 dBc

Mer informasjon
ProdusentTekBox
ProduktnrTBTC2
