Rigol MHO98 12-Bit 1 GHz 4-kanals oscilloskop (Limited edition)

Vi klarer desverre ikke å skaffe flere enheter av MHO98, men kan tilby MHO984 og MHO954 med gratis lisens for 50MHz signalgenerator en begrenset periode!

OBS! Begrenset tilgjengelighet, kun 1998 stk. verden over, levering kan ikke garanteres!

Each unit of the Rigol MHO98 Special Edition comes with a unique 24K gold-plated nameplate engraved with an exclusive serial number.

Its metallic front panel with deep 3D patterns and premium control knobs showcase both quality and individuality, turning a precision tool into a symbol of technical passion !

Fully Loaded Performance – 1 GHz Bandwidth + All Features Included

 Bandwidth Upgrade: Boosts analog bandwidth from up to 800 MHz (Standard Edition) to 1 GHz, meeting high-frequency testing needs.

Maxed-Out Memory Depth: Comes standard with 500 Mpts memory depth (vs. 100 Mpts standard), ensuring no signal detail is missed.

All Options Included: dual-channel 100 MHz signal source, PLA2216 16-channel logic probe, complete serial protocol decoding package (I²C, SPI, UART, CAN, LIN, etc.), and a dedicated carrying case.

Ready for all-around testing straight out of the box.

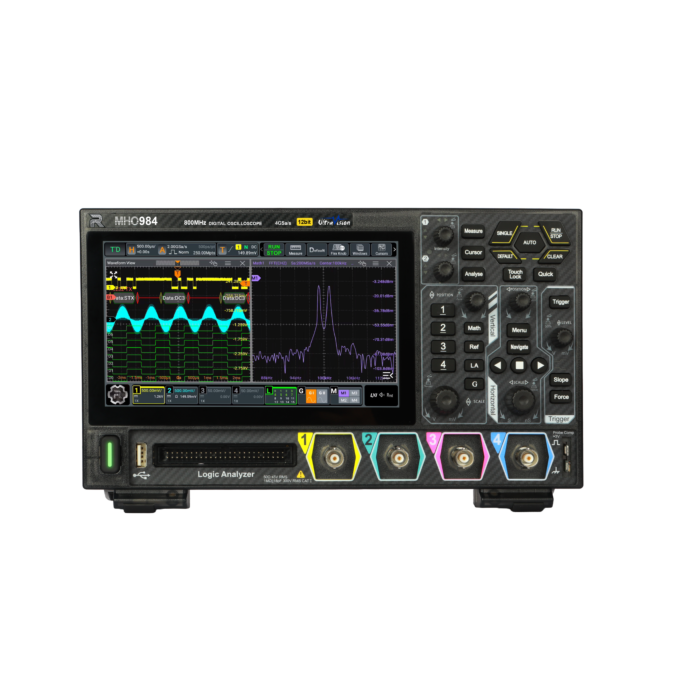

The Rigol MHO98 is a limited edition Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 1 GHz analog bandwidth , 4 GSa/s real-time sampling, and 500 Mpts memory depth.

Beyond its powerful specifications, the MHO9 Series integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.

• 4 analog channels, Input Impedance 50 Ω± 1%, 1 MΩ ± 1%
• 1 GHz analog bandwidth
• 12-bit resolution
• Real-time sample rate: up to 4 GSa/s
• 16 digital channels, 200 MHz PLA2216 logic analyzer probe
• Max. memory depth of 500 Mpts
• Vertical sensitivity 200 μV/div to 10 V/div
• Max. waveform capture rate:1,000,000 wfms/s
• Digital phosphor display with real-time 256-level intensity grading
• 2-channel 100 MHz Function/Arbitrary Waveform Generator (Bode plot supported)
• Supports histogram,digital signal analysis, etc.
• Supports waveform search and navigation function, capable of debugging the signal anomalies faster
• 7" (1024x600)HD touch screen
• Flex knob for user-friendly experience
• LAN, USB2.0 Device & Host and HDMI interfaces
• Aux output for Trigger out or Pass / Fail out.
• WIFI and bluetooth
• Novel and delicate industrial design,easy to operate
• Supports online upgrade of software version

Download Rigol MHO98 Limited edition datasheet
