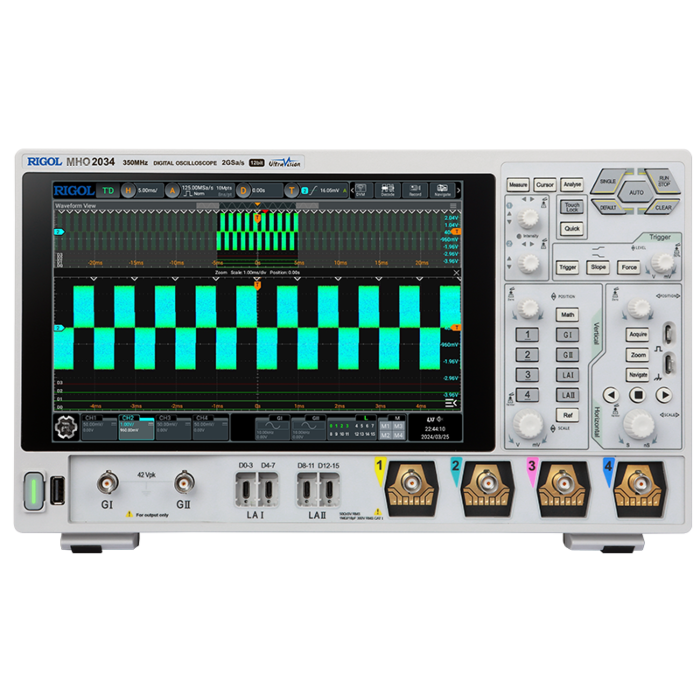

Rigol MHO2034 12-Bit 350MHz 4 + 16 kanals oscilloskop

The MHO2000 series is a high-resolution 4-CH digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet the design, debugging, and test demands. It is developed based on RIGOL's brand new self-developed Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test demands for higher accuracy. The MHO2000 series digital oscilloscope supports AFG, digital signal analysis, Bode plot, and other functions. It is powered by battery pack, applicable for various complex test scenarios.

• 350 MHz bandwidth
• 4 analog channels, and 1 external trigger channel
• 16 Digital channels (PLA3204 Probes not included)
• Real-time sample rate: up to 2 GSa/s
• Max. memory depth 500 Mpts
• Vertical sensitivity up to 200 μV/div
• Max. waveform capture rate of 1,000,000 wfms/s (in fast recording mode)
• 2 channel, 50MHz Arbitrary / Function Waveform Generator(Optional, requres license)
• power analysis, histogram, digital signal analysis, Bode plot, and protocol decodings
• Search and navigation functions enable users to quickly search for the signals with exceptions and locate them accurately
• 256-level intensity grading display, with digital real-time fluorescence technology
• 10.1" 1280*800 high-definition touch screen, HDMI out for external monitor.
• Brand new Flex knob brings friendly user experience
• Interfaces include USB Device, USB Host, LAN and HDMI
• Optional Battery pack for convenient use anytime and anywhere, providing great feasibility for measurement.

Last ned Rigol MHO2000 series Datablad
