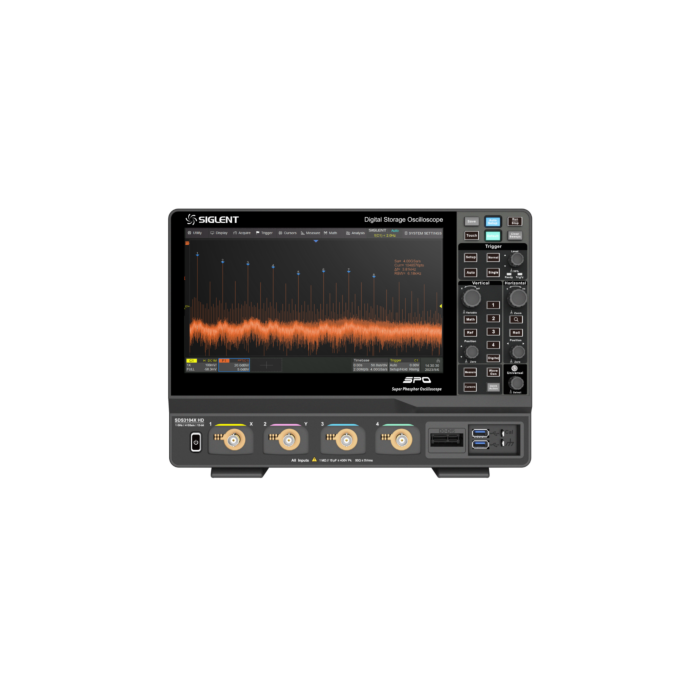

Siglent SDS3104X HD 12-Bit 1GHz 4-kanals oscilloskop

kr 88 000,00 kr 70 400,00
Varenummer
101600
  • 4 Analog channels + 16 digital channels
  • 1 GHz Bandwith
  • 12-bit high resolution
  • Sampling rate up to 4 GSa/s
  • Memory depth up to 400 Mpts
  • Waveform capture rate up to 890,000 wfm/s (Sequence mode)
  • Noise floor as low as 125 μVrms at 1 GHz full bandwidth

SIGLENT SDS3000X HD series Digital Storage Oscilloscopes are available in bandwidths of 1 GHz, 500 MHz and 350 MHz, have 12-bit ADCs with sample rate up to 4GSa/s, maximum record length of 400 Mpts/ch, and display up to 4 analog channels + 16 digital channels for high performance mixed signal analysis.

The SDS3000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 200,000 wfm/ s, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot and Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS3000X HD .

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operational efficiency. It also supports mouse control, and remote web control over LAN.



Key Features

  • 1 GHz Bandwith
  • 4 analog channels, up to 1 GHz bandwidth with up to 4GSa/s sample rate
  • 12-bit ADC
  • Low background noise: 125 μVrms @ 1 GHz bandwidth
  • SPO technology
    • Waveform capture rates up to 200,000 wfm/s in Normal mode and 890,000 wfm/s in Sequence mode
    • Supports 256-level intensity grading and color temperature display modes
    • Up to 400 Mpts/ch record length
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
  • Automatic measurements on 50+ parameters, supports statistics with  histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces
  • 4 Math traces (4 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
  • Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis
  • High Speed hardware-based Average, ERES; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (Probe optional)
  • External 50 MHz waveform generator (optional)
  • Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
  • Interfaces include: 2x USB 3.0 Host,1x USB 2.0 Host , USB 3.0 Device (USBTMC),1000M LAN ((VXI-11/Telnet/Socket/LXI)), External Triger In, Aux Out (Pass/Fail, Trigger Out)
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.

Last ned datablad for Siglent SDS3000X HD series

Mer informasjon
ProdusentSiglent
ProduktnrSDS3104X HD
Båndbredde1 GHz
Capture rate200,000 wfm/s, Sequence mode up to 890,000 wfm/s
Samplingshastighet4 GSa/s (single channel), 4 GSa/s (half channels), 2 GSa/s (all channels)
Kanaler4
Resolution12-Bit
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
