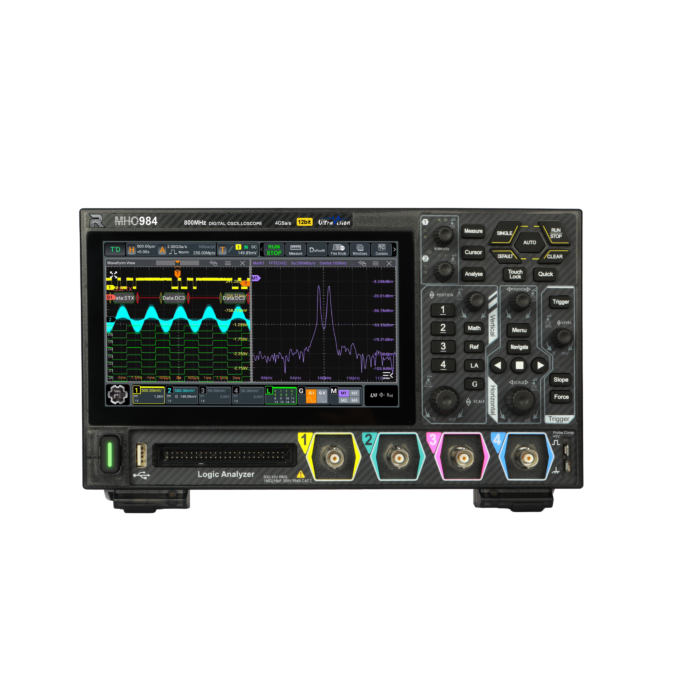

Rigol MHO984 12-Bit 800MHz 4-kanals oscilloskop

The Rigol MHO900 Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 800 MHz analog bandwidth , 4 GSa/s real-time sampling, and 500 Mpts memory depth.

Beyond its powerful specifications, the MHO900 Series integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.

• 4 analog channels, Input Impedance 50 Ω± 1%, 1 MΩ ± 1%
• 800 MHz analog bandwidth
• 12-bit resolution
• Real-time sample rate: up to 4 GSa/s
• 16 digital channels, 200 MHz PLA2216 logic analyzer probe (optional)
• Max. memory depth of 100 Mpts (500 Mpts option)
• Vertical sensitivity 200 μV/div to 10 V/div
• Max. waveform capture rate:1,000,000 wfms/s
• Digital phosphor display with real-time 256-level intensity grading
• Optional 2-channel, 50 MHz / 100 MHz Function/Arbitrary Waveform Generator (Bode plot supported)
• Supports histogram,digital signal analysis, etc.
• Supports waveform search and navigation function, capable of debugging the signal anomalies faster
• 7" (1024x600)HD touch screen
• Flex knob for user-friendly experience
• LAN, USB2.0 Device & Host and HDMI interfaces
• Aux output for Trigger out or Pass / Fail out.
• WIFI and bluetooth
• Novel and delicate industrial design,easy to operate
• Supports online upgrade of software version

MHO934 includes 4 pcs. PVP2350 350 MHz probes,  MHO954 / MHO984 includes 4 pcs. RP3500A probes.

Download Rigol MHO900 series datasheet
