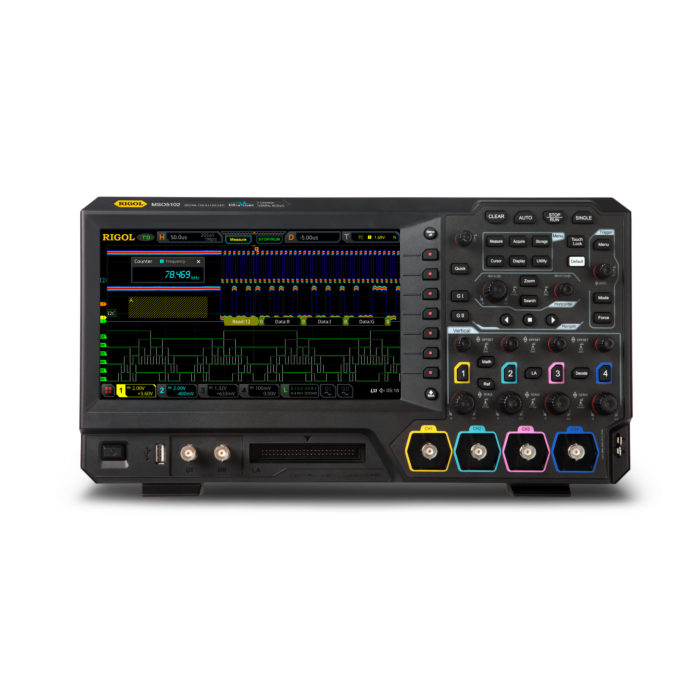

Rigol MSO5102 100MHz 2-kanals oscilloskop
Rigol MSO5102 is a high performance and economical 2-channel digital oscilloscope based on the technology of RIGOL ultravision II generation.
The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with a modern, flexible User Interface enabled by Rigol's new UltraVision II architecture and innovative Phoenix Chipset.
With 70 to 350 MHz models each with 2 or 4 analog channels, Rigol MSO5000 Series brings innovative flexibility and capability to the engineer’s bench.
Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
- Analog bandwidth: 100 MHz (bandwidth upgrade option supported)
- 2 analog channels(4 channel upgrade option), standard 16 digital channels(LA probe required)
- Up to 8 GSa/s real-time sample rate
- Up to 200 Mpts memory depth (option)
- High waveform capture rate (over 500,000 wfm/s)
- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of serial protocol triggers and decodes
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
- Independent search, navigation keys, and event table
Built-in advanced power analysis software (option)
- Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter,a frequency counter and totalizer, and a protocol analyzer
- 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
- Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Novel and delicate industrial design, easy to operate
|Capture rate||≥500,000 wfm/s|
|Samplingshastighet||8 GSa/s (single channel), 2 GSa/s (all channels)|
|Logikkanalysator / Digitale kanaler||16(Opsjon)|
