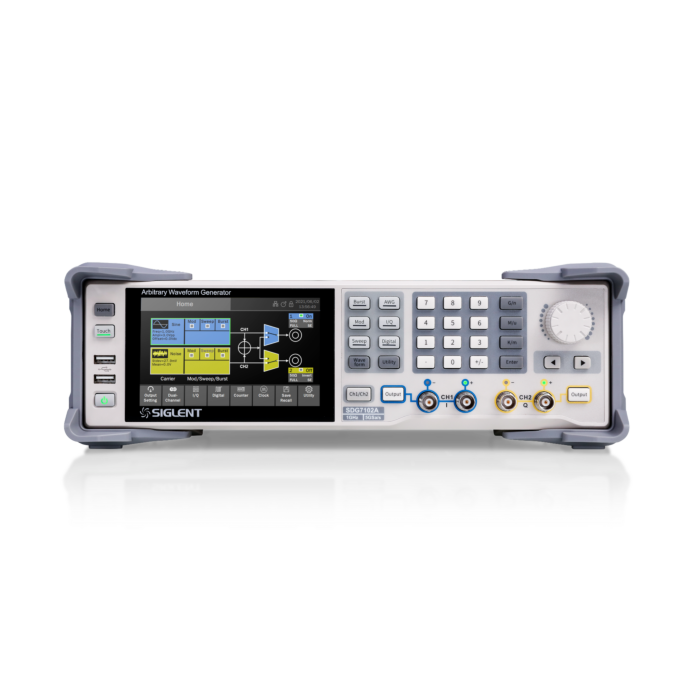

Siglent SDG7052A 500MHz 2-kanals signalgenerator

kr 144 735,00 kr 115 788,00
Varenummer
101074

SIGLENT SDG7052A 500MHz dual-channel Arbitrary Waveform Generators with a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution

SIGLENT’s SDG7000A is a family of dual-channel Arbitrary Waveform Generators that feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signals with a maximum of 500 MSa/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweeping, bursting, and dual-channel copying/coupling/tracking and superposition. The outputs are user selectable for differential or single-ended connections and support a maximum output range of ± 24 V. The instrument can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements.

Key Features

  • Dual-channel differential/single-ended output16-bit LVDS/LVTTL digital bus outputs (optional)
  • High-performance sampling system with 5 GSa/s sample rate and 14 -bit vertical resolution
  • 1 GHz maximum bandwidth
  • Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s
  • Memory depth of 512 Mpts
  • Segmented editing /playback functions
  • Generates vector signals with up to 500 MS/s symbol rate.
  • Generates low jitter pulses with 1 ns minimum pulse
    width and 500 ps minimum edge
  • Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth
  • PRBS up to 312.5 Mbps
  • LVTTL and LVDS Digital bus options for digital signal sourcing  up to 1 Gbps
  • Includes popular analog/digital modulation types, sweeping and bursting functions
  • Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying
  • Dual-channel superposition function
  • Mutual modulation between channels
  • The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
  • High precision Frequency Counter
  • 5-inch capacitive touch screen with a resolution of 800×480
  • External mouse and keyboard operation
  • WebServer to control the instruments remotely without downloading software
  • Includes 10 MHz In, 10 MHz Out, Trigger In/Out, and Marker sync connections
  • Full SCPI command manual for easy integration into test systems
Mer informasjon
Båndbredde500 MHz
Kanaler2
ProdusentSiglent
ProduktnrSDG705A
