Siglent F603FE Mekanisk kalibreringskit SMA-Type female

kr 5 360,00 kr 4 288,00
Varenummer
100350

Siglent F603FE kalibreringskit inneholder presisjons 50 Ω, fasetilpassede, N-standarder som brukes til å kalibrere ved målinger med bla. Siglent SVA1000X vektor og spektrumanalysatorer.

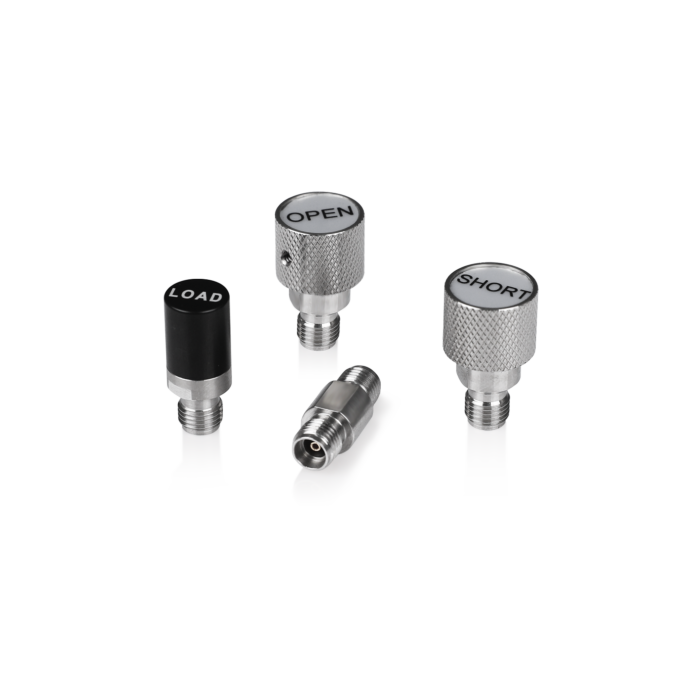

Standarder inkluderer en 50Ω terminering(SMA-female), en åpen(SMA-female), en kortslutning(SMA-female) og et gjennomgangs adapter(SMA-female x 2).

Kan brukes som erstatning for Keysight 85033E kalibreringskit.

50Ω 3.5mm/SMA type coaxial mechanical calibration standards
include fixed terminations, open
circuits, short circuits, and through adaptors, specified from DC to 4.5
GHz.


The F603ME and F603FE performance specifications are very similar to the Keysight 85033E
mechanical calibration kit and it can be used as an approximate replacement of 85033E, or use the STD
of 85033E in network analyzers.



Open 3.5mm-Female DC – 4.5 GHz, Phase Deviation ≤ ± 1.0°
Short 3.5mm-Female DC – 4.5 GHz, Phase Deviation ≤ ± 1.0°
Load 3.5mm-Female DC – 4.5 GHz, SWR ≤ 1.04 (Return Loss ≥ -34 dB)
Through 3.5mm-Female to
3.5mm-Female
DC – 9 GHz, SWR ≤ 1.035 (Return Loss ≥ -35 dB),
Insert Loss ≤ 0.2 dB, Delay= 56.8 ps



General Specification

Impendence 50 Ω
Power 1 W
Interfaces Standard IEC 60169-23
Durability > 2000
Torque 0.9 Nm
Spanner 8 mm
Temperature -15 °C ~ + 35 °C



Mer informasjon
ProdusentSiglent
ProduktnrF603FE
