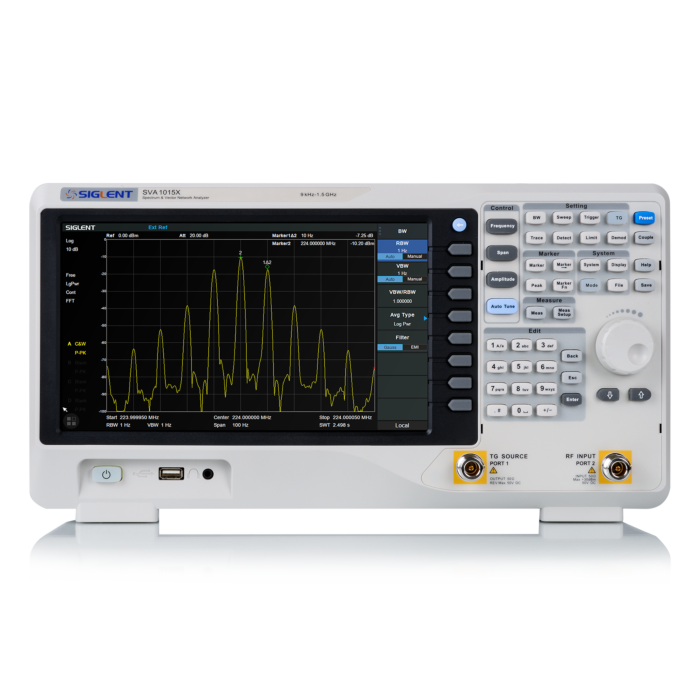

Siglent SVA1015X 1,5GHz Spektrum & vektor nettverksanalysator

kr 18 035,00 kr 14 428,00
Varenummer
100228

The SIGLENT SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for RF signal and network analysis.

The SIGLENT SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for RF signal and network analysis.

With a frequency range up-to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: the base model is a spectrum analyzer and a vector network analyzer,  optional functions include a distance-to-fault locator,  a vector signal modulation analyzer.

Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.



  • Tracking Generator (Std.)
  • Distance To Fault (Opt.)
  • Vector Signal Modulation Analysis (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit (Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation
Mer informasjon
ProdusentSiglent
ProduktnrSVA1015X
Frekvensområde9 KHz - 1.5 GHz
Båndbredde (RBW)1 Hz - 1 MHz
Phase Noise< -99 dBc/Hz @ 1 GHz, 10 kHz offset
Total amplitude accuracy≤ 1.2 dB
DANL-156 dBm/Hz
