Siglent F503FE Mekanisk kalibreringskit N-Type female

kr 4 595,00 kr 3 676,00
Varenummer
100496

Siglent F503FE kalibreringskit inneholder presisjons 50 Ω, fasetilpassede, N-standarder som brukes til å kalibrere ved målinger med bla. Siglent SVA1000X vektor og spektrumanalysatorer.

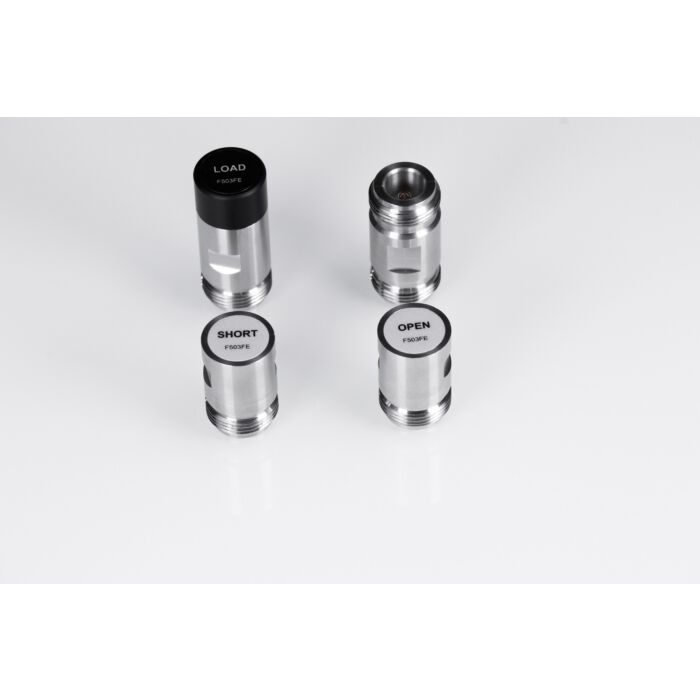

Standarder inkluderer en 50Ω terminering(N-female), en åpen(N-female), en kortslutning(N-female) og et gjennomgangs adapter(N-female x 2).

Kan brukes som erstatning for Keysight 85032B/E kalibreringskit.

The F503ME and F503FE economy 50Ω N type coaxial mechanical calibration standards include
fixed terminations, open
circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz.


The F503FE performance specifications are very similar to the Keysight 85032B/E
mechanical calibration kit and it can be used as an approximate replacement of 85032B/E, or use the
STD of 85032B/E in network analyzers.



General Specification

Impendence 50 Ω
Power 1 W
Interfaces Standard IEC 60169-16
Durability > 2000
Torque 1.35 Nm
Spanner 19 mm
Temperature -15 °C ~ + 35 °C



Mer informasjon
ProdusentSiglent
ProduktnrF503FE
