RIGOL RSA800-VSA VECTOR SIGNAL ANALYSIS SOFTWARE

Overview

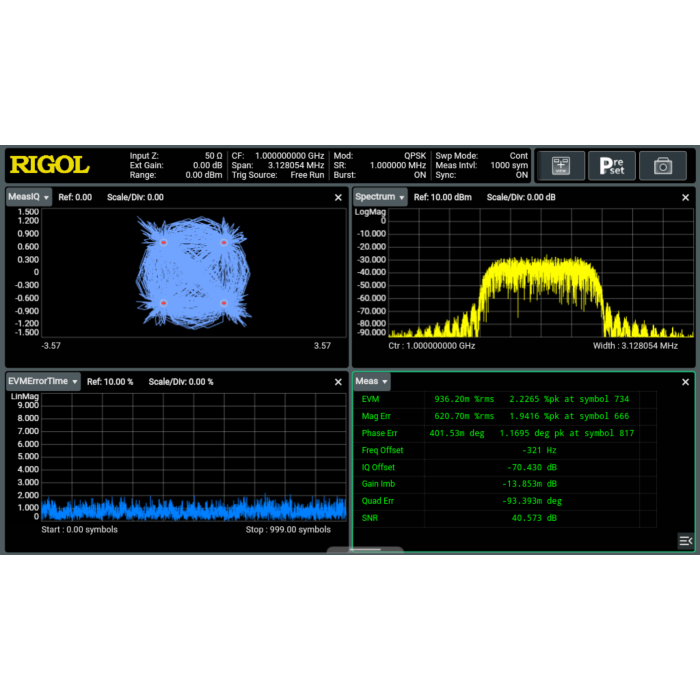

The RIGOL RSA800-VSA is an advanced Vector Signal Analysis application software designed to expand the capabilities of the RSA800 Series Real-Time Spectrum Analyzers. This software option enables engineers to evaluate the performance of complex digitally modulated signals, making it an essential tool for R&D and production testing in wireless communications.

With a maximum analysis bandwidth of 40 MHz and a maximum sample rate of 51.15 MSa/s, the RSA800-VSA delivers deep measurement insights into signal quality. It supports a vast array of modulation formats, including complex QAM, PSK, and FSK configurations, allowing users to isolate timing issues, verify transmitter performance, and perform reliable digital demodulation with high efficiency.

Product Features

Extensive Modulation Support

Analyze a wide array of digital formats including up to 1024QAM, various PSK (such as QPSK and 8PSK), FSK schemes, and ASK. This flexibility ensures comprehensive coverage for diverse RF testing needs and custom embedded designs.

Preset Wireless Standards

Accelerate your testing workflows with built-in presets for cellular communication like GSM, WCDMA, and NADC. It also includes presets for wireless networking standards such as Bluetooth, WLAN (802.11b), and various Zigbee frequencies, alongside TETRA, DECT, and APCO-25.

High-Resolution Capture

Leverage up to 40 MHz of analysis bandwidth and a maximum sample rate of 51.15 MSa/s to capture and analyze wideband signals accurately. The software supports a capture length of up to 4,096, providing detailed time-domain records.

Flexible Filtering Options

Customize your measurements with multiple measurement and reference filter types. Select from Raised Cosine, RRC, Gaussian, Rectangular, Half Sine, or deploy user-defined filters to match your specific testing parameters.

Technical Specifications

• Supported FSK Formats: 2FSK, 4FSK, 8FSK

• Supported PSK Formats: BPSK, QPSK, OQPSK, DQPSK, Pi/4-DQPSK, 8PSK, D8PSK, Pi/8-D8PSK

• Supported QAM Formats: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, 1024QAM

• Supported ASK Formats: 2ASK, 4ASK

• Supported MSK: Enables or disables differential encoding for MSK

• Preset Cellular Standards: GSM, NADC, WCDMA, PDC, PHP(PHS)

• Preset Wireless Standards: Bluetooth, WLAN (802.11b), ZIGBEE 868M, ZIGBEE 915M, ZIGBEE 2450M

• Other Preset Standards: TETRA, DECT, APCO-25

• Measurement Filter Types: No Filter, RRC, Gaussian, Rectangular, user-defined

• Reference Filter Types: Raised Cosine, RRC, Gaussian, Rectangular, Half Sine, user-defined
