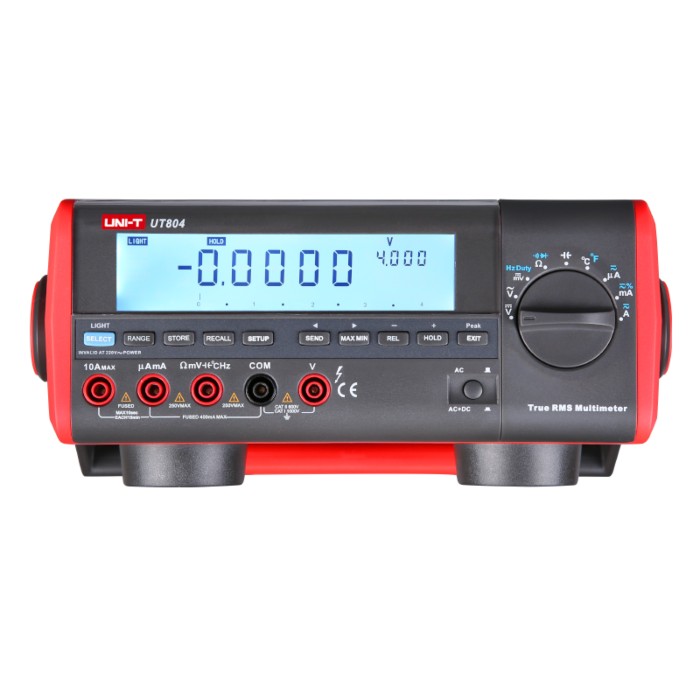

UNI-T UT804 4 ¾ Multimeter
kr 3 575,00 kr 2 860,00
Varenummer
101478
Prisgunstig og enkelt multimeter.
| Range | Auto |
| Polarity | Auto |
| Overloading | Display OL (except at 4~20mA Loop range which display HI or LO) |
| Battery Deficiency | Display |
| Tri Displays Analogue Bar Graph | Primary: 40,000 counts Left Secondary: 4000 counts.Right Secondary: 4000 counts Bar Graph: 40 segments, updates 10 times / second |
| Backlight | Bright backlight for clear readings in poorly lighted areas. |
| Autorange | The Meter automatically selects best range |
| AC+DC True RMS, AC RMS | Choices for AC only or AC+DC readings |
| Data Hold | Holds readings on display |
| Continuity | Beeper sounds for resistance readings below threshold. |
| Bar Graph | 40 segments |
| Duty Cycle | Measure signal on or off time in %. |
| MAX MIN Mode | Record maximum and minimum |
| Battery Access Door | Battery replaceable. |
| Function |
Ranges / Description |
| DC Voltage |
0 to 1000V |
| AC Voltage, True RMS |
0 to 1000V, 100kHz bandwidth |
| Basic Accuracy | DC Voltage: 0.025% AC Voltage: 0.4% |
| DC Current |
0 to 10A (5~10A for 10 seconds, interval 15 minutes) |
| AC Current, True RMS |
0 to 10A (5~10A for 10 seconds, interval 15 minutes) |
| Resistance |
0 to 40MΩ |
| Capacitance |
0 to 40m |
| Frequency |
0~400MHz |
| Temperature | -40oC~1000oC |
| STORE Readings | Up to 9999 readings may be saved by the user in a memory. These readings may be viewed by using Recall feature. |
| Produsent | UNI-T |
|---|---|
| Produktnr | UT804 |
