UNI-T UT682 Kabeltester / kabelsøker

Skriv en produktanmeldelse

kr 725,00 kr 580,00

Varenummer

101483

Prisgunstig kabelsøker / partester

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detaljer

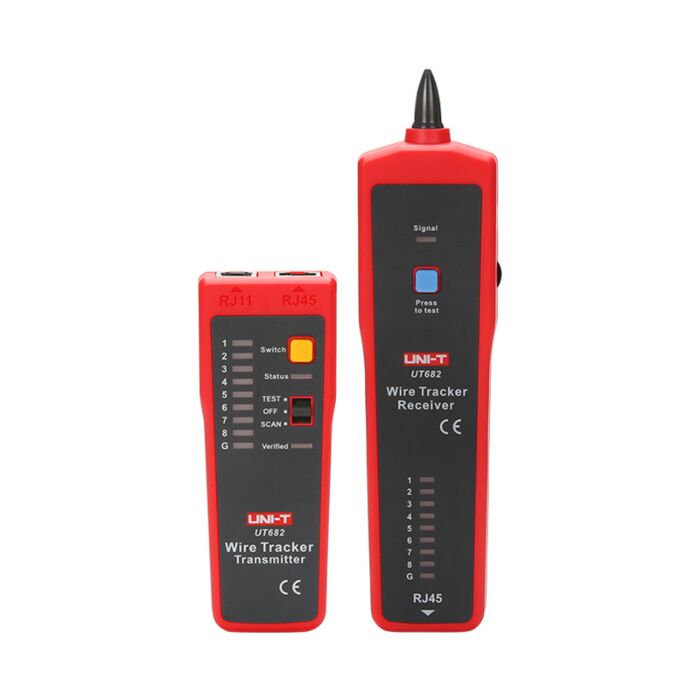

UNI-T UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation and troubleshoot ethernet cables and is a recommended tool for debugging communication cables.

Specifications	Range		UT682
Wire tracking features	Wire types		LAN cable\telephone line\coaxial cable\electric wire
	Indication light for signal strength		√
	Live switchboard wire tracing		√
	Switchboard wire tracing distance		≥100m
	Telephone lines tracking distance		≥3000m
	Unshielded cables tracking distance		≥320m
	Shielded cables tracking distance		≥320m
	Open and short circuit test		√
	Polarity indication for telelphone lines	DCV function, range: ±(5V~52V)	√
	Telephone lines and LAN cables distinction	Jacks distinction	√
	Broken wire tracking		√
	Transmitter output voltage		≥12V peak-peak
	Transmitter low battery indication		6.6V±0.5V
	Transmitter power supply	9V battery	√
	Max transmitter working current		25mA
	Headphone jack for receiver		√
	Receiver power supply	9V battery	√
	Max receiver standby current	~10mA	√
	Max receiver operating current	<40mA (AC, RMS)	√
Wire alignment	Line sequence measurement	9 LEDs (LED1~LED8, LED_G)	√
	Line sequence measuring speed	Fast and slow selectable	√
	LAN cable: shielded/unshielded indication		√
Transmitter input voltage protection			52V DC
Operating environment	Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m
General Characterisitics
Product color	Red and grey
Product net weight	UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size	UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
Standard accessories	9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)

Mer informasjon

Mer informasjon
Produsent	UNI-T
Produktnr	UT682
