UNI-T UT219DS AC/DC 600A CAT IV 600V Strømtang

kr 2 485,00 kr 1 988,00

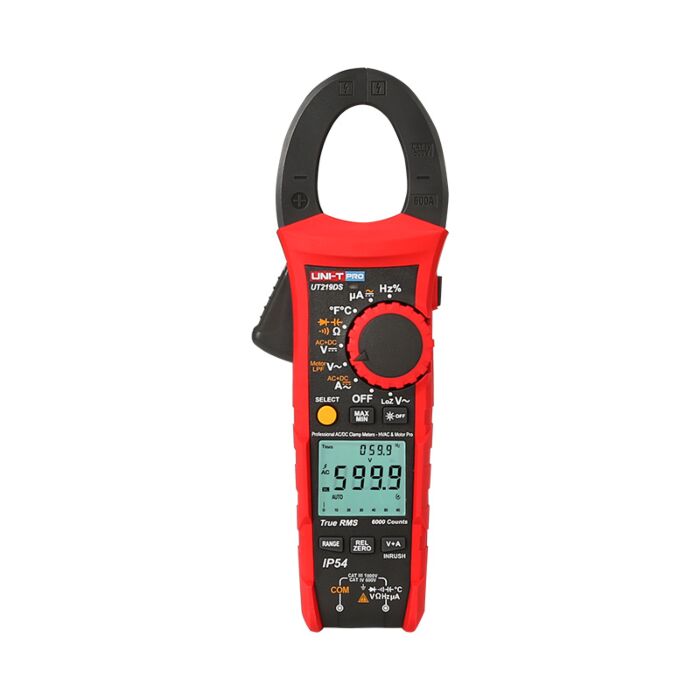

UNI-T UT219DS is a 600A true RMS professional clamp meter with CAT IV 600V rating.

It is industrially designed with IP54 rating and able to withstand a 2 meters drop test, it's designed to be used in harsh environments. This series is built for professional technicians, electricians, HVAC/R and motor technicians, but also DIY and and others would value the quality and functions of this clamp meter.

  • Auto/manual range/ZERO mode
  • True RMS/auto power off
  • IP54/2m drop proof
  • Data hold/relative mode
  • Backlight
  • Low battery indication
  • Dual display
Specifications Range UT219DS
AC current (A) 600A ±(1.8%+6)
DC current (A) 600A ±(1.8%+6)
AC voltage (V) 1000V ±(1%+6)
DC voltage (V) 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance (Ω) 60MΩ ±(1%+3)
Capacitance (F) 60mF ±(4%+7)
Frequency (Hz) 600Hz~40MHz ±(0.1%+6)
Duty cycle 0.1%~99.9% ±(2.6%+7)
Temperature -40~1000℃ ±(2%+5℃)
-40~1832℉ ±(2%+9℉)
Display count   6000
Auto/Manual range
Jaw opening   33mm
True RMS
AC current frequency response   40Hz~400Hz
AC voltage frequency response   40Hz~1kHz
3-phase motor sequence test 600V
Low pass filter 1kHz, 3db attenuation
V+A displays voltage and current at the same time
Diode test   3V
Measurement sampling rate   5 times/s
Analog bar sampling rate   20 times/s
Analog bar   31 segment
Display interface (LCD)   Dual
Auto power off/MAX/MIN
Low battery indication
Data hold (H)/Relative mode (REL)
ZERO mode
Function selection (SELECT)
Auto backlight/2m drop test
IP rating   IP54
Input impedance ≥10MΩ
General Characterisitics
Power 1.5V battery (R03) x 3
Display 35mm x 31mm
Product color Red and grey
Product net weight 310g
Product size 234.6mm x 82mm x 47mm
Standard accessories Test leads, batteries, carrying bag, PC software CD, point contact temperature probe


Last ned UT219DS datablad
