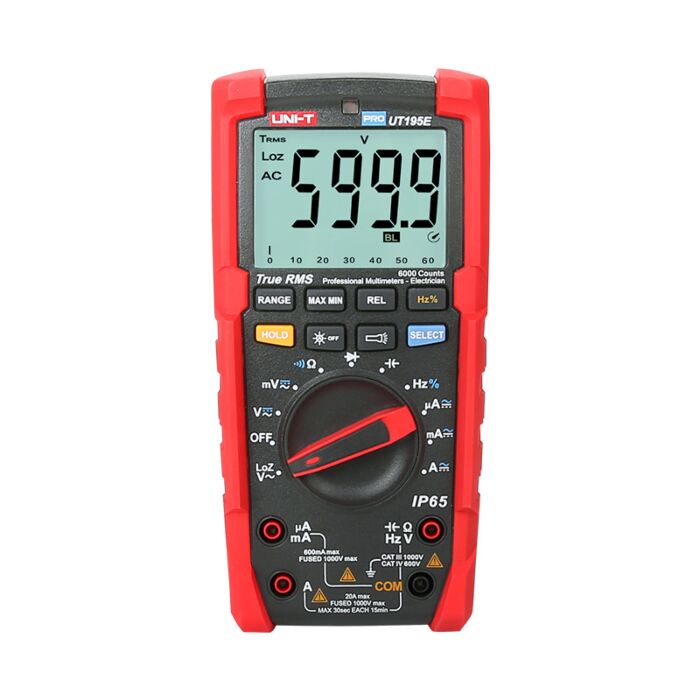

UNI-T UT195E Multimeter

kr 1 850,00 kr 1 480,00
Varenummer
101281

Industrial grade True RMS Multimeter

  • True RMS
  • IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
  • Large 6000-count LCD screen with backlight
  • ACV 750V 5kHz bandwidth
  • LoZ voltage test, for ghost voltage measurement
  • 20A current measurement (max 30 seconds)
  • 31 analog bar
Specifications Range UT195E UT195M UT195DS
DC voltage (V) 1000V ±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
AC+DC 750V ±(0.7%+3) ±(0.7%+3) ±(0.7%+3)
AC voltage (V) 600V     ±(1.5%+4)
LoZ ACV 600V ±(2%+3) ±(2%+3) ±(2%+3)
DC current (A) 20A ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
AC current (A) 20A ±(1%+3) ±(1%+3) ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
Capacitance 60mF ±(3%+5) ±(3%+5) ±(3%+5)
Frequency 60Hz~10MHz ±(0.1%+4)
60Hz~40MHz   ±(0.1%+4) ±(0.1%+4)
Duty cycle 0.1%~99.9% ±(2%+5) N/A ±(2%+5)
Temperature (°C) -40°C~1000°C   ±(1.5%+4)
Temperature (°F) -40°F~1832°F   ±(2%+5)
Features
Display count   6000 6000 6000
Display interface (LCD)   Single Single Dual
Measurement sampling rate times/s 3 3 5
Analog bar sampling rate times/s 10   20
Analog bar 31 sections
True RMS
AC voltage frequency response   45~400Hz 45~1kHz 45~5kHz
AC current frequency response   45~400Hz 45~1kHz 45~5kHz
3-phase motor sequence test 600V
Low pass filter 1kHz 3dB attenuation
Diode/Continuity test   3.5V 3V 3V
Peak hold 250μs
Auto/Manual range
Continuity buzzer
Low battery indication
Data hold/Auto power off
MAX/MIN
Function selection
Flashlight/Auto backlight



General Characteristics
Power 9V battery
LCD size 66mm x 51mm
Product color Red and grey
Product net weight 437g
Product size 195mm x 95 mm x 58mm
Standard accessories Test probes, battery, carrying bag, point contact temperature probe (UT195M)



Last ned datablad for UT195E
