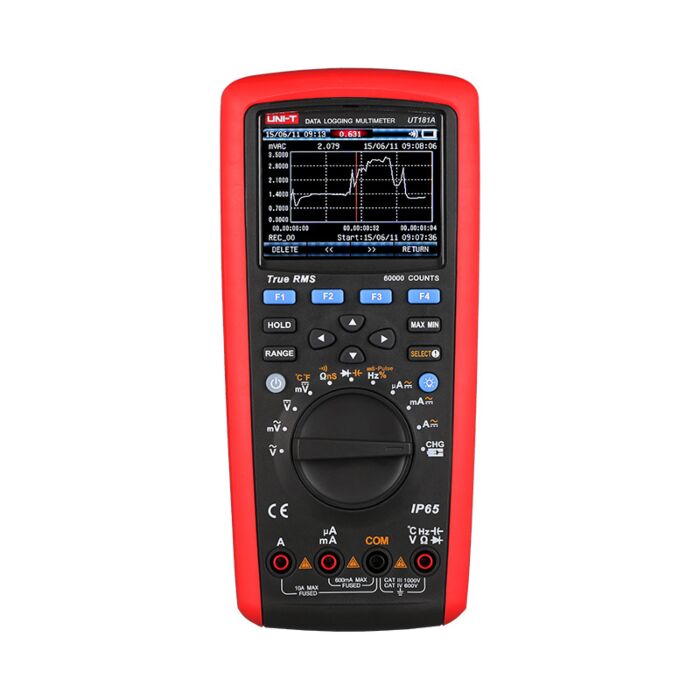

UNI-T UT181A Multimeter Datalogging

kr 4 975,00 kr 3 980,00
True RMS Datalogging Multimeter

UNI-T UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the datalogging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.

  • Trend capture
  • Data logging: 20000
  • Data comparison
  • Peak hold
  • Dual temperature measurement
  • Low pass filter
  • 3.5-inch 64k color TFT LCD
  • 2000mAh Li-ion battery
  • Real time and date
  • Bluetooth/APP (Optional)
  • USB interface cable / PC software
  • IP65


Specifications Range UT181A
DC voltage (V) 1000V ±(0.025%+5)
AC voltage (V) 1000V ±(0.3%+30)
DC current (A) 10A ±(0.08%+10)
AC current (A) 10A ±(0.6%+20)
Resistance (Ω) 60MΩ ±(0.05%+2)
Admittance (nS) 60nS ±(2%+10)
Capacitance (F) 60mF ±(2%+5)
Frequency (Hz) 10Hz~60MHz ±(0.01%+5)
Temperature (°C)  -40°C~1000°C ±(1%+30)
Temperature (°F)  -40°F~1832°F ±(1.5%+50)
Display count   60000
Auto/Manual range
Bandwidth (Hz) 100kHz
AC+DC/Continuity buzzer
Low pass filter 1kHz
Diode Around 3V
Duty cycle 10%~90%
Dual temperature measurement T1, T2, T1-T2, T2-T1
Data hold/Peak hold
Relative mode
Data logging 20000
Trend capture
Data time display/Data comparison
Backlight adjustment
Analog bar graph/USB interface
Mis-plug alarm
Battery indication/Auto power off
Rechargeable battery
Input protection
Input impedance for DCV ≥10MΩ


General Characteristics
Power Li-ion battery: 7.4V 2000mAh
Display 3.5-inch 64K color TFT LCD (320 x 240)
Product color Red and grey
Product net weight 638.6g
Product size 225mm x 103mm x 59mm
Standard accessories Battery, test leads, temperature adaptor socket,
point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
Standard individual packing Gift box, carrying bag, English manual
Standard quantity per carton 20pcs
Standard carton measurement 480mm x 385 mm x 505mm
Standard carton gross weight 25.3kg
Optional accessory Bluetooth adaptor (UT-D07)


Last ned datablad for UTI181A
