UNI-T UDP3305S-E 328W 4-kanals strømforsyning, 10mV / 1mA oppløsning

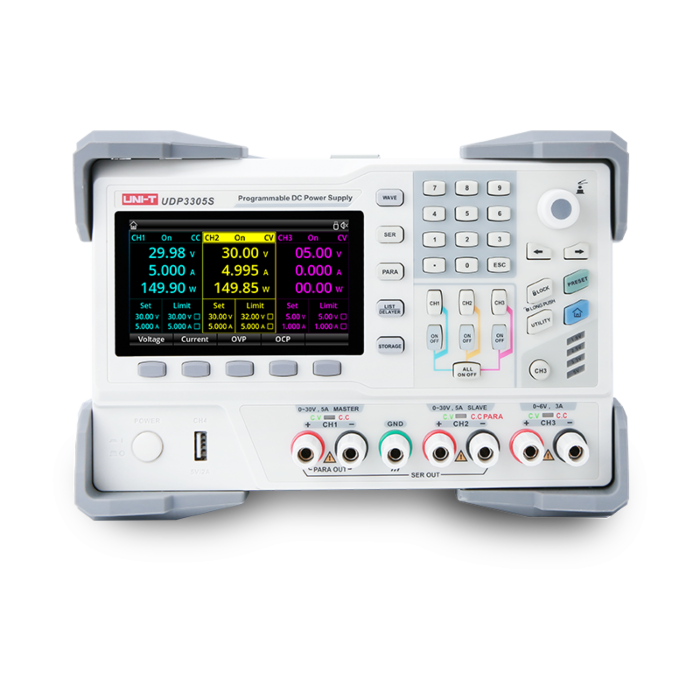

UNI-T UDP3305S-E is a high-performance programmable linear DC power supply.

It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified needs of different users.

A cost-effective DC programmable power supply with great performance.

• Ultra low ripple (< 350 μ VRMs / 2mvpp, ≤ 2marms)
• High resolution 10mV / 1mA
• List / delay function
• Waveform display
• Remote control, USB, LAN, I/O
• 4.3 inch LCD display
• 4 electrically isolated independent channels with a maximum total power of up to 328W
• CH1: 0-32 V/5 A || CH2: 0-32 V/5 A || CH3: 0-6 V/3 A || CH4: 5V/2A (USB output)
• Internal series/parallel connections for CH1 and CH2
• Digital I/O port, external trigger and control
• Protection function, OCP, OVP, OTP protection and monitor functions
