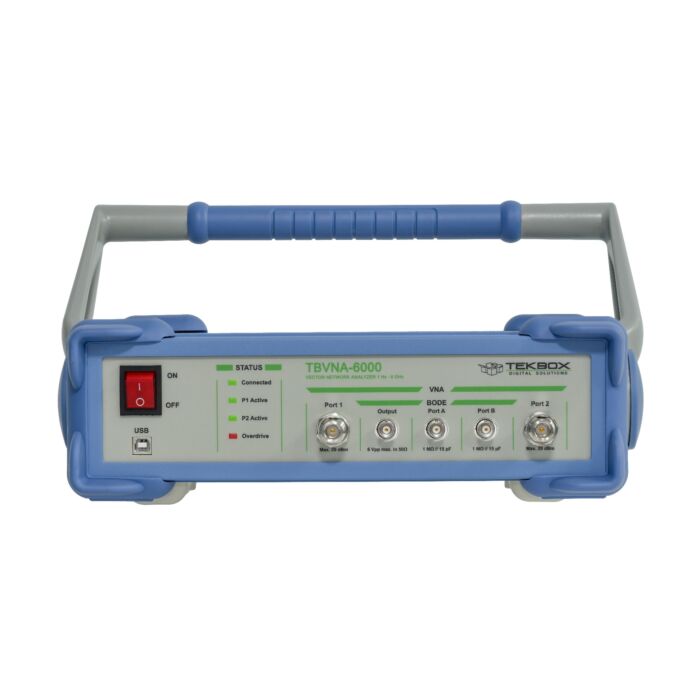

Tekbox TBVNA-6000 0.1 Hz – 6 GHz Vector Network Analyzer

Promotion – free BODE-analyzer option until 31.12.2025

The Tekbox TBVNA-6000 two-port Vector Network Analyzer offers numerous features to allow a detailed analysis of RF devices and components.

With a bandwidth ratio of 1 : 6000000000 the instrument covers measurement applications from audio to RF frequencies.

Through its fully DC coupled active VSWR bridges, measurements down to 1Hz are possible without sacrificing accuracy.

The instrument uses four independent measurement channels simultaneously for accurate and fast two port measurements.

A rich set of software utilities like spectrum analyzer or oscilloscope make this instrument a versatile helper in development or test applications.

SPECIFICATIONS

• 0.1 Hz – 6 GHz Vector Network Analyzer
• 0.001 Hz – 500 MHz Bode Analyzer (requires Bode Hardware Option)
• Signal generator 0.1 Hz – 6 GHz with 0.1 Hz resolution
• Four channel 60 MHz digital oscilloscope with 125 MS/s and 14 bit resolution. (Two 50 Ω inputs, two 1 MΩ inputs)
• Two-Channel DC – 6 GHz spectrum analyzer, with an unambiguous frequency range of DC – 60 MHz and an active sideband suppression for spurious-free signal measurements up to 6 GHz (under certain conditions) and cross correlation option. (Input channels can be among all 4 input ports)
• Power sweep measurements
• Wideband Power/Voltage measurements
• THD analyzer
• Phase noise analyzer
• General noise and bode measurements
• Two 1 MΩ // 15 pF, 500 MHz, +/-20 V Inputs for gain-phase and DC measurements

Download:

Tekbox TBVNA-6000 datasheet

Tekbox TBVNA-6000 Geting started Guide

Tekbox TBVNA-6000 User manual
