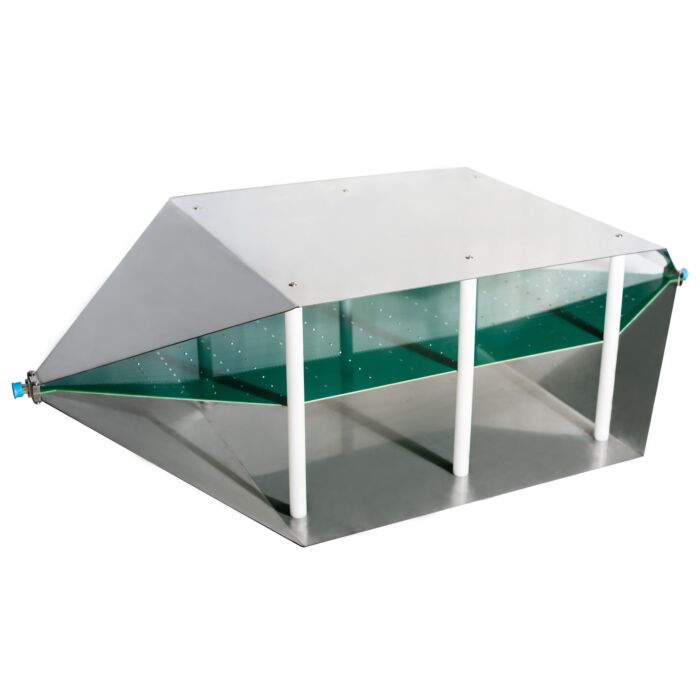

Tekbox TBTC3 OPEN TEM Cell 150 mm

kr 14 180,00 kr 11 344,00
Varenummer
100298

Open TEM Cell for EMC Pre-Compliance Testing, 150mm Septum.

Open TEM Cell for EMC Pre-Compliance Testing, 150mm Septum

Bestillingsvare.

Lengde: 1038 mm
Vidde: 501 mm
Høyde: 305 mm
Septum høyde: 150 mm

Rektangulært område under septum: 36 cm x 48 cm x 15 cm

TEM cell connectors: N-female

Nominal cell impedance: 50 Ohm
Wave impedance: 377 Ohm
Maximum RF input power: 25W
Input return loss: S11 up to 700MHz < -16dB
Transmission loss: up to 730MHz < 3dB



DC-Block 50V-6GHz-N
Connectors: N-Male/Female
Nominal impedance: 50 Ohm
Max. continuous RF power: 2W
Max. continuous RF voltage: 50V RMS
Frequency: 500kHz to 6 GHz
VSWR: ≤ 1.2

RF-Termination 50Ω-3GHz-25W-N
Connector: N-Male
Nominal impedance: 50 Ohm
Max. continuous RF power: 25W
Frequency: DC to 3 GHz
VSWR: ≤ 1.2
Third order intermodulation: ≤ 120 dBc

Mer informasjon
ProdusentTekBox
ProduktnrTBTC2
