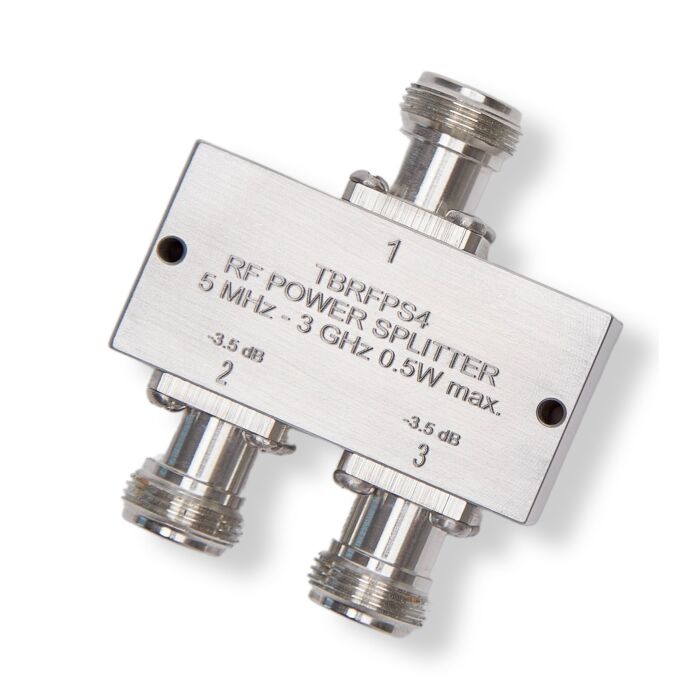

Tekbox TBRFPS4 General Purpose 2 Way Power Splitter/Power Combiner 3-3000 MHz

kr 1 110,00 kr 888,00
Varenummer
TBRFPS4

Tekbox TBRFPS4

  • max. power [W]: 0.5
  • frequency range [MHz]: 5 – 3000

typical mid-band performance

  • S21 above 3 dB [dB]: -0.6
  • S31 above 3 dB [dB]: -0.9
  • Amplitude unbalance [dB]: -0.3
  • Phase unbalance [°]: 0.5
  • Isolation [dB]: 21
  • SWR Port 1: 2.0
  • SWR Port 2: 2.0
  • SWR Port 3: 2.0

Connectors: N-Female
Housing: brushed aluminium, 56 x 27 x 22 mm, 130 g
Mounting: 2 x
Ø 3 mm through holes, 50 mm center to center spacing

Mer informasjon
ProdusentTekBox
Produktnr101149
