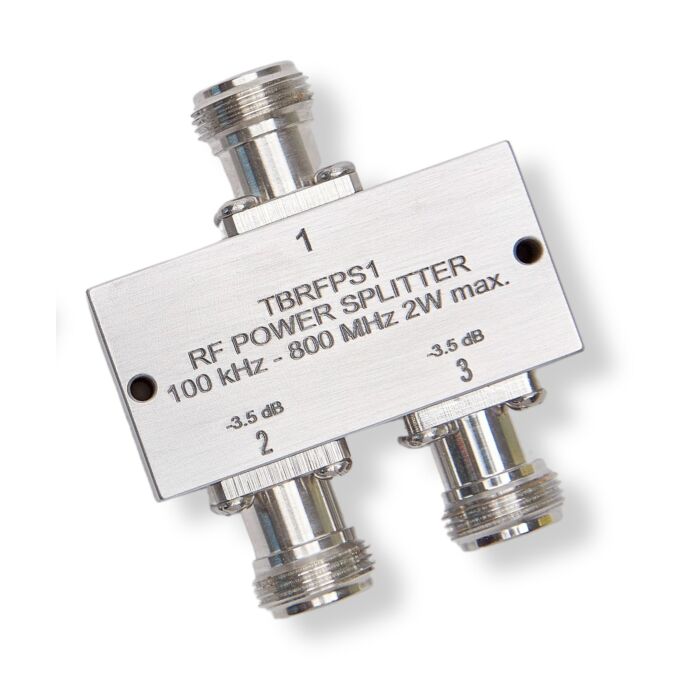

Tekbox TBRFPS1 General Purpose 2 Way Power Splitter/Power Combiner 0.1-800 MHz

kr 965,00 kr 772,00
Varenummer
101148

Tekbox TBRFPS1

  • max. power [W]: 2
  • frequency range [MHz]: 0.1 – 800

typical mid-band performance

  • S21 above 3 dB [dB]: -0.5
  • S31 above 3 dB [dB]: -0.6
  • Amplitude unbalance [dB]: 0.1
  • Phase unbalance [°]: 0.1
  • Isolation [dB]: 23
  • SWR Port 1: 1.2
  • SWR Port 2: 1.2
  • SWR Port 3: 1.2

Connectors: N-Female
Housing: brushed aluminium, 56 x 27 x 22 mm, 130 g
Mounting: 2 x
Ø 3 mm through holes, 50 mm center to center spacing

Mer informasjon
ProdusentTekBox
ProduktnrTBRFPS1
