Tekbox TBPS01-TBWA2/20dB EMC Near-Field Probe Set + 20dB Wideband Amplifier

kr 4 670,00 kr 3 736,00
Varenummer
100281

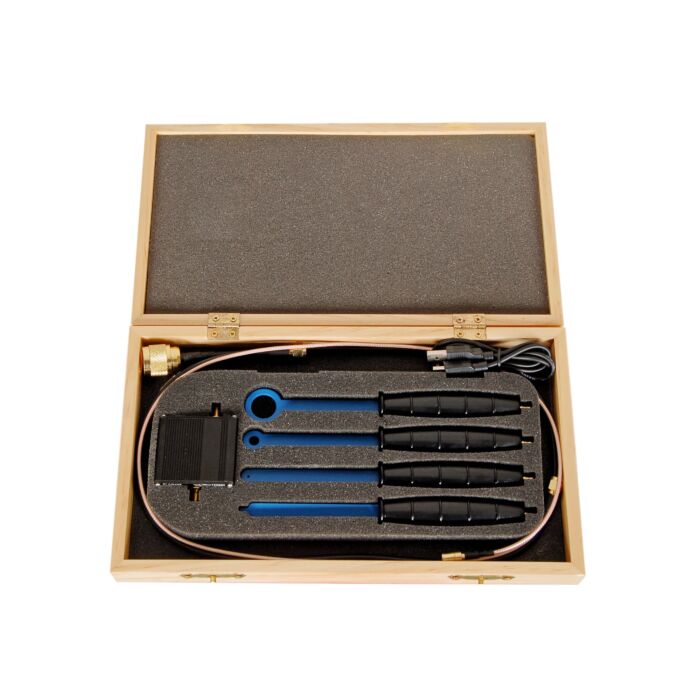

The H20, H10, H5 and E5 are magnetic field (H) and electric field (E) probes for radiated emissions EMC pre-compliance measurements. Includes a TBWA2/20dB wideband amplifier.

The H20, H10, H5 and E5 are magnetic field (H) and electric field (E) probes for radiated emissions EMC pre-compliance measurements.

The probes are used in the near field of sources of electromagnetic radiation.

They serve to locate and identify potential sources of interference within the building blocks of electronic assemblies.

The probes act similar as wide bandwidth antennas, picking up radiated emissions from components, PCB traces, housing openings or gaps and from any other parts that could be emitting RF.

The probes are usually connected to a spectrum analyzer.

Scanning the probe over the surface of a PCB assembly or housing quickly identifies locations which emit electromagnetic radiation.

By changing to a probe with smaller size, the origination of the emissions can be further narrowed down.

Additional applications are RF immunity tests by feeding a RF signal into the probe and radiating it into potentially susceptible circuit sections: Furthermore the probes can be used in the field of repair or debugging to track down issues in RF signal chains by contact less measurement of RF signal levels.

One more application is non- invasive measurement of RF building blocks such as modulators or oscillators. Frequency, phase noise and spectral components can be measured in conjunction with a low noise preamplifier.

TBWA2/20dB - 20dB wideband amplifier

Technical Data:
Input: 50 Ohm, SMA
Output: 50 Ohm, SMA
Nominal supply Voltage: 4.5 - 5V, typ. 110mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +10dBm
1dB output compression point @ 2GHz: +20dBm
3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, Δf = 10MHz: +35dBm
Reverse isolation S12, 0.1 …6GHz: 23dB
Noise Figure @ 2GHz: 4.5 … 5 dB

Gain:

1 MHz

10 MHz

100 MHz

500 MHz

1 GHz

3 GHz

4.5 GHz

6 GHz

14.8 dB

20.2 dB

20.2 dB

20 dB

19.8 dB

17.6 dB

17.4 dB

15.4 dB
