Tekbox TBMA6-P 9 kHz - 30 MHz Passive Loop Antenna

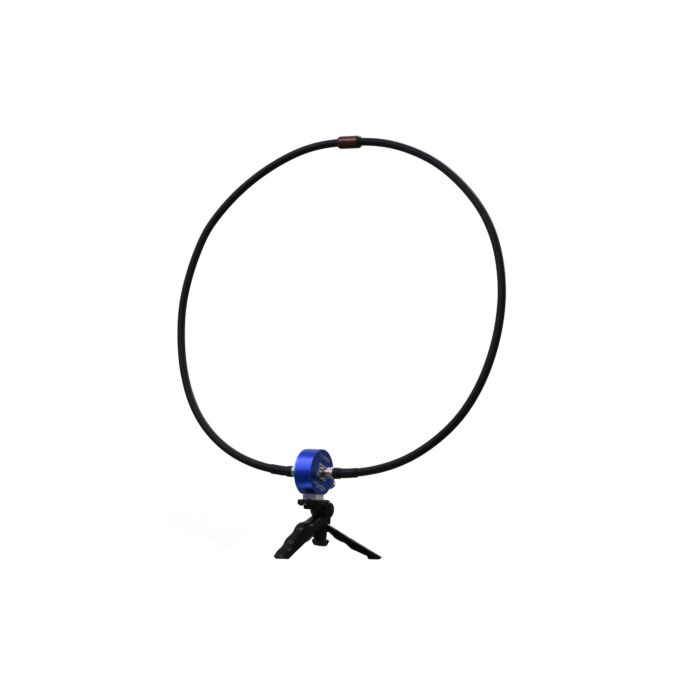

Tekbox TBMA6-P is a passive Loop Antenna is designed for radiated emission measurements in the frequency range of 9 kHz – 30 MHz, according to CISPR 16. The loop antenna has a diameter of 60 cm and provides sufficient sensitivity to carry out all relevant measurements specified in the corresponding CISPR standards for the frequency range of 9 kHz – 30 MHz.

The loop is built from a corrugated coaxial cable and attached to the transducer with N-connectors. This construction provides flexibility to use it with various loop diameters. An attachment with a ¼” thread permits connectivity to standard tripods.

SPECIFICATIONS

• Characterized frequency range: 9 kHz to 30 MHz
• Magnetic field antenna factor: -20 dB/Ωm @ 30 MHz, typ.
• Electric field antenna factor: 31,5 dB/m @ 30 MHz, typ.
• Sensitivity: -24 dBµA/m @ 30 MHz
• Dimensions: Ф 60 cm
• Weight: 800 g
• Connector type: N female
• Mount: ¼” thread
