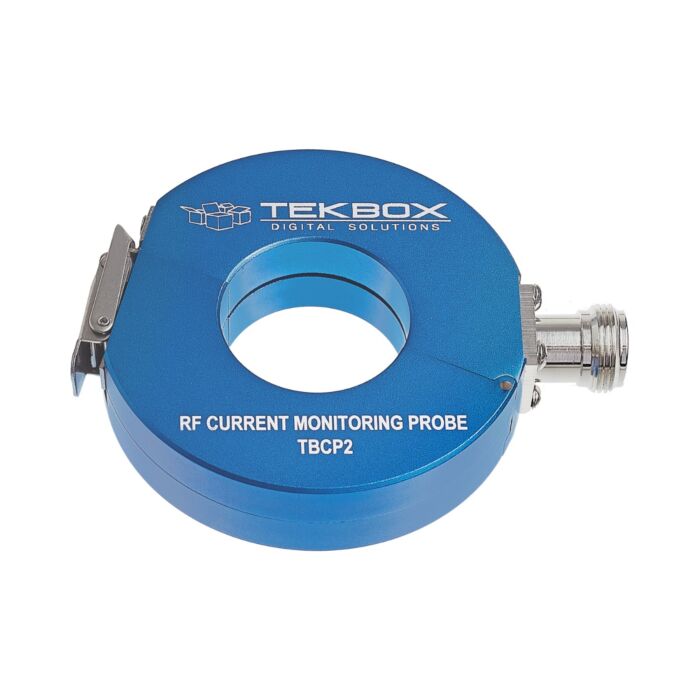

Tekbox TBCP2-750 30 kHz to 750 MHz snap on Current Monitoring Probe

kr 10 925,00 kr 8 740,00
Varenummer
100571

Affordable snap-on RF current monitoring probe with a 3dB bandwidth of 750 MHz.

Tekbox TBCP2-750 is a affordable snap-on RF current monitoring probe.
The probe has a very flat response with a 3dB bandwidth of 750 MHz.

SPECIFICATIONS

  • Characterized frequency range: 30 kHz to 800 MHz
  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 20 dBΩ between 150 kHz and 750 MHz
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
Mer informasjon
ProdusentTekBox
ProduktnrTBCP2-750
