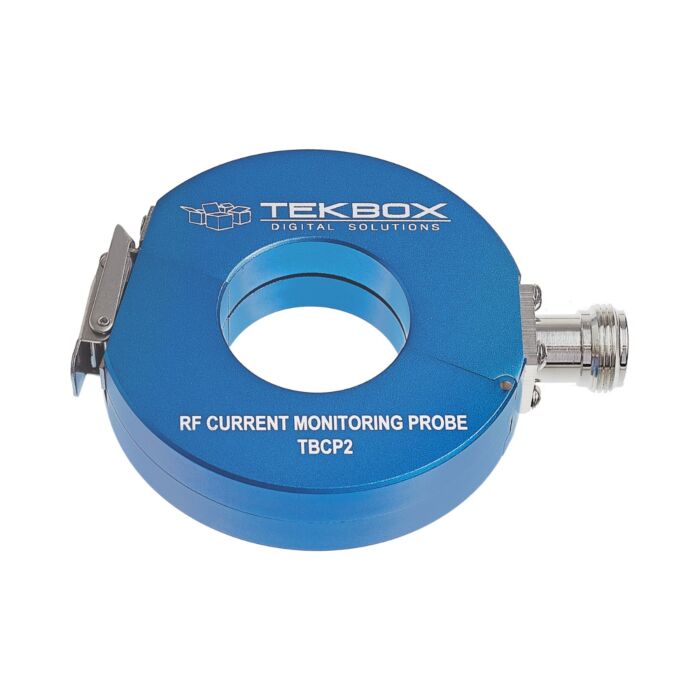

Tekbox TBCP2-500 30 kHz to 500 MHz snap on Current Monitoring Probe
kr 9 720,00 kr 7 776,00
Varenummer
100570
Affordable snap-on RF current monitoring probe with a 3dB bandwidth of 500 MHz.
Tekbox TBCP2-500 is a affordable snap-on RF current monitoring probe.
The probe has a very flat response with a 3dB bandwidth of 500 MHz.
SPECIFICATIONS
- Characterized frequency range: 30 kHz to 600 MHz
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
- Connector type: N female
- Transfer impedance: 0 to 18 dBΩ between 100 kHz and 500 MHz
- Max. primary current (DC – 400 Hz): 80 A
- Max. primary current (RF): 3 A
- Max. core temperature: 125 °C
| Produsent | TekBox |
|---|---|
| Produktnr | TBCP2-500 |
