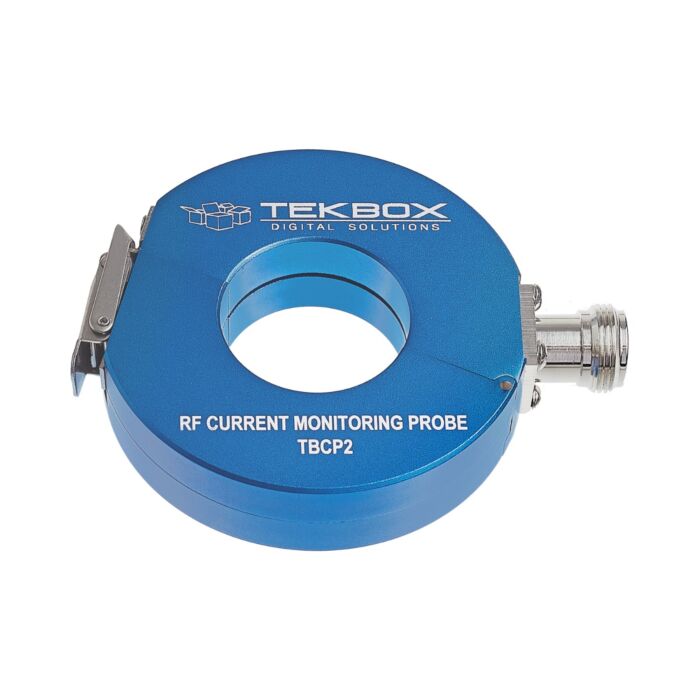

Tekbox TBCP2-250 30 kHz to 250 MHz snap on Current Monitoring Probe

kr 9 280,00 kr 7 424,00
Varenummer
100569

Affordable snap-on RF current monitoring probe with a 3dB bandwidth of 250 MHz.

Tekbox TBCP2-250 is a affordable snap-on RF current monitoring probe.
The probe has a very flat response with a 3dB bandwidth of 250 MHz.

SPECIFICATIONS

  • Characterized frequency range: 30 kHz to 250 MHz
  • Aperture diameter: 32 mm
  • Outside diameter: 73 mm
  • Height: 20 mm
  • Weight: 320 g
  • Connector type: N female
  • Transfer impedance: 0 to 14 dBΩ between 100 kHz and 250 MHz
  • Max. primary current (DC – 400 Hz): 80 A
  • Max. primary current (RF): 3 A
  • Max. core temperature: 125 °C
Mer informasjon
ProdusentTekBox
ProduktnrTBCP2-250
