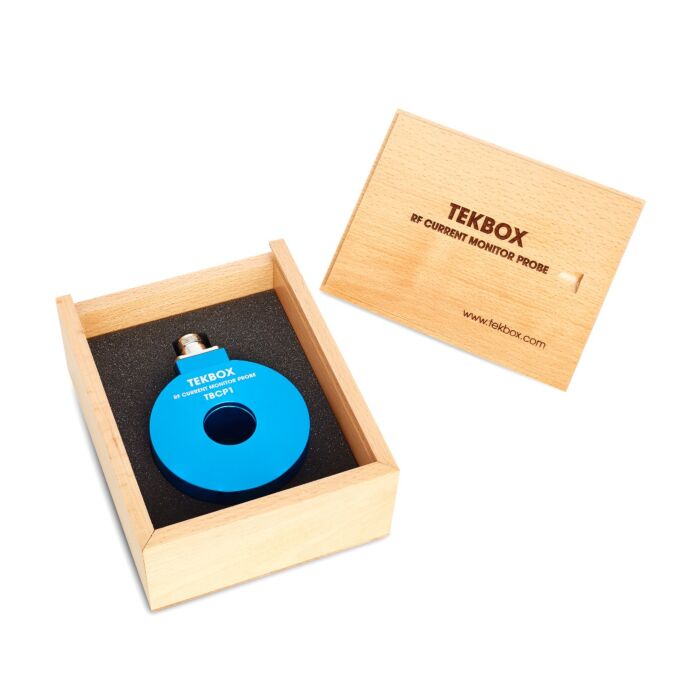

Tekbox TBCP1-200 RF Current Monitoring Probe

Tekbox TBCP1-200 is a fixed aperture RF current monitoring probe.
The probe has a 3dB bandwidth of approximately 200 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 14 dB Ohm in the range from 40 kHz to 200 MHz.

• Characterized frequency range: 10 kHz to 200 MHz
• Aperture diameter: 25 mm
• Outside diameter: 76 mm
• Height: 31 mm
• Weight: 320 g
• Connector type: N female
• Transfer impedance: 3 to 17 dBΩ
• Max. primary current (DC – 400 Hz): 80 A
• Max. primary current (RF): 3 A
• Max. core temperature: 125 °C
