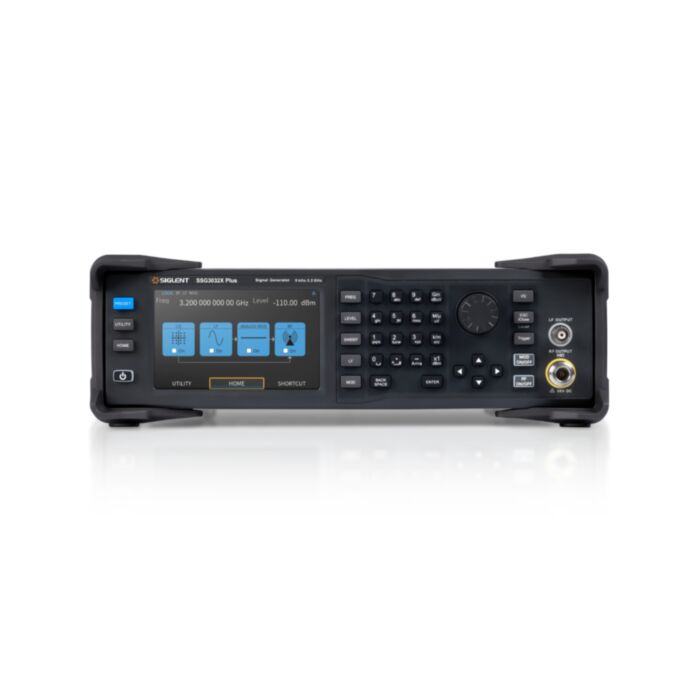

Siglent SSG3021X Plus 2.1GHz RF Generator

The Siglent SSG3021X Plus is an advanced, reliable, and cost-effective RF signal generator designed for demanding tasks in research, development, electronic manufacturing, education, and maintenance. Covering a continuous frequency range from 9 kHz up to 2.1 GHz with a precise 0.01 Hz setting resolution, this instrument delivers accurate and stable signals for rigorous high-frequency RF testing. This clean signal solution comes standard with analog modulation formats such as AM, FM, and PM, as well as high-performance pulse modulation featuring an on/off ratio exceeding 68 dBc. For applications demanding extreme timing precision, the platform also supports an optional high-stability OCXO reference source.

Built for durability and ease of use, the instrument is housed in a compact benchtop enclosure with integrated protective bumpers, making it ideal for both laboratory benches and automated test racks. The user interface is driven by an intuitive 5-inch capacitive touchscreen with an 800x480 resolution, which, along with a physical keypad and full USB mouse and keyboard support, provides a seamless user experience. With built-in support for USB power sensor leveling control, the unit offers flexible and powerful test integration via standard USB and LAN connectivity.

Product Features

Excellent Phase Noise and Pure Signal Output

Delivering an ultra-low typical phase noise of -117 dBc/Hz at 1 GHz (20 kHz offset) and harmonic suppression below -30 dBc, the generator supplies exceptionally clean CW carriers for receiver sensitivity and selectivity testing up to 3.2 GHz. For maximum stability and accuracy over time and temperature variations, the generator can be upgraded with a high-stability OCXO clock reference.

Broad Output Level and Power Meter Control

The RF output level is fully adjustable from -110 dBm to +13 dBm, with a maximum output capability reaching up to +20 dBm (typical), which frequently eliminates the need for external RF amplifiers. The instrument also features full support for USB power meter control, allowing you to connect a compatible power sensor directly to the generator for accurate measurement and automated level control at the input of the component being tested.

Versatile Analog and Improved Pulse Modulation

The unit comes standard with AM, FM, and PM, driven by an internal low-frequency waveform generator. Additionally, it provides advanced pulse modulation capabilities offering significantly improved pulse fidelity with rise/fall times under 50 ns. With support for custom pulse sequences via the optional Pulse Train Generator, engineers gain full flexibility to simulate complex radar and telemetry signals.

Intuitive Touchscreen and Flexible Connectivity

A bright 5-inch capacitive touchscreen provides an immediate visual overview of the entire signal path and all modulation parameters at a glance. The instrument integrates rapidly into automated systems via USB Host, USB Device (USBTMC), and LAN (VXI-11, Socket, Telnet), and also supports direct web-browser remote control for convenient operation during field or maintenance tasks.

Technical Specifications

• Frequency Range (CW Mode): 9 kHz to 2.1 GHz

• Frequency Resolution: 0.01 Hz

• Specified Output Level Range: -110 dBm to +13 dBm (up to +20 dBm typ.)

• Level Accuracy: <= 0.7 dB (typ.)

• SSB Phase Noise: -117 dBc/Hz (typ. at 1 GHz, 20 kHz offset)

• Frequency Reference: 10 MHz (Optional OCXO with +/- 1 ppb temperature stability)

• Analog Modulation Types: AM, FM, PM, and Pulse Modulation

• Pulse Modulation On/Off Ratio: >= 68 dBc

• Pulse Rise/Fall Time: < 50 ns (10% to 90% of RF amplitude)

• Display: 5-inch TFT capacitive touch screen, RGB (800x480)

• Web browser remote control on PC and mobile terminals
• Communication Interfaces: USB-Host (USB-A 2.0), USB-Device (USB-B 2.0), LAN (RJ-45, VXI-11, Socket, Telnet)

• Dimensions (W x H x D): 338 x 113 x 369 mm

• Weight: 4.84 kg
