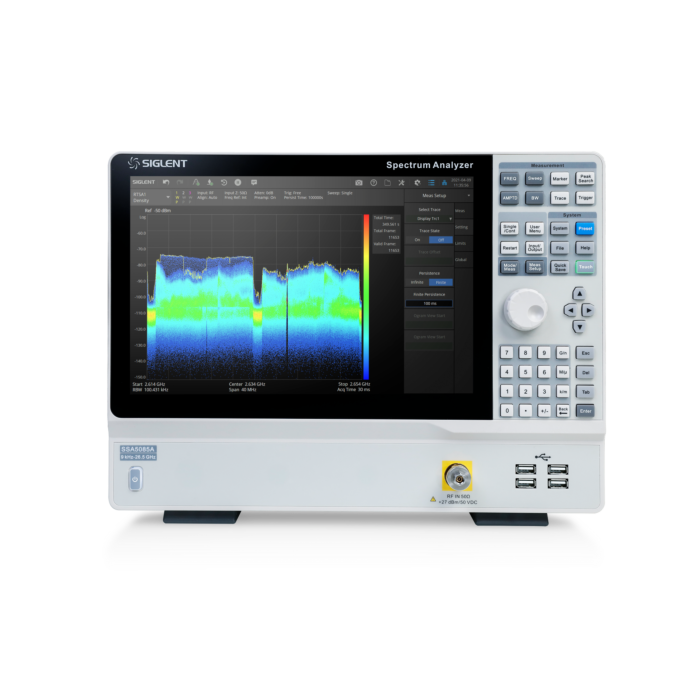

Siglent SSA5083A 13.6 GHz Spektrumanalysator

kr 233 705,00 kr 186 964,00


The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

Key Features

  • Spectrum Analyzer Frequency Range from 9 kHz up to 26.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
  • 25 MHz/40 MHz Real Time Analysis Bandwidth (opt)
  • 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc. (opt)
  • Analog Modulation Analysis and Vector Digital Modulation Analysis (opt)
  • 12.1 inch Multi-Touch Screen, HDMI output
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Download Siglent SSA5000A datasheet

Mer informasjon
Frekvensområde9 kHz - 13.6 GHz
Phase Noise< -105 dBc/Hz@1 GHz,10 kHz offset
DANL-165 dBm/Hz
