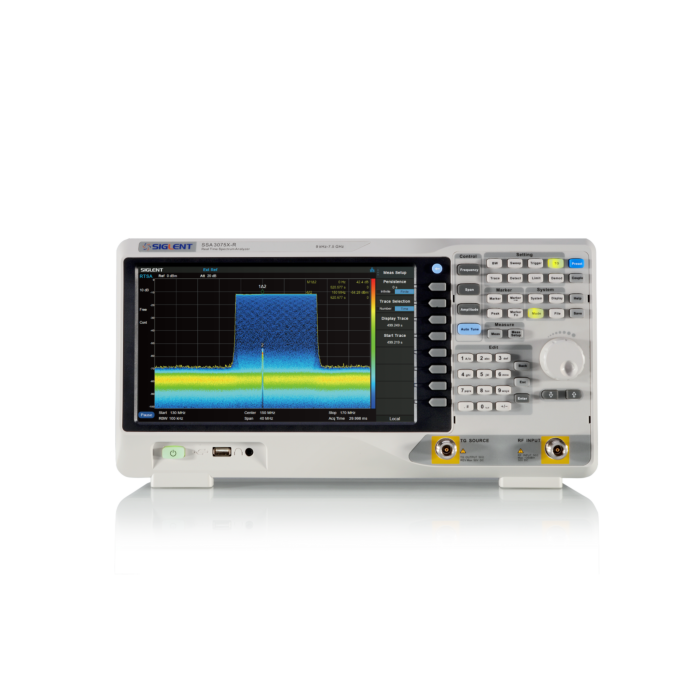

Siglent SSA3075X-R 7,5GHz sanntids spektrumanalysator

kr 137 080,00 kr 109 664,00
Varenummer
100445

Free upgrade to 40 MHz of real-time bandwidth included.

With the full real-time bandwidth, your new SIGLENT Real-Time Spectrum Analyzer visualizes a wide span and captures more dynamic signals with a low minimum signal duration with 100% probability of intercept.

Need of EMI pre-compliance testing?

Buy a SRF5030T near-field probe kit with your SSA3000X-R  and receive a free EMI option activation license!

Add EMI pre-compliance testing capability to your work bench and test facility with just a little extra cost.

Avoid added costs and development delays by performing fast and reliable pre-compliance testing.

SIGLENT’s advanced EMI pre-compliance solution provides the tools to ensure your new products pass full compliance tests the first time.

Offer valid till 31 dec. 2023

The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis.

With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide a standard tracking generator for network analysis, optional wideband digital modulation analysis, and EMI pre-compliance test.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.



  • Spectrum Analyzer Frequency Range from 9 kHz up to 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard
  • Tracking Generator
  • Vector Network Analyzer Mode Standard (100 kHz up to 3.2 GHz / 5 GHZ / 7.5 GHz)
  • Distance to Fault Mode Standard
  • 25 MHz Real Time Analysis Bandwidth (40 MHz Real Time Analysis Bandwidth as Option)
  • 100% POI 7.20 μs, Dynamic Range 60 dB
  • Multi-view for Density, Spectrogram, PvT, and multi trigger and FMT
  • Modulation Analysis (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation



Download Siglent SSA3000X-R datasheet

Mer informasjon
ProdusentSiglent
ProduktnrSSA3075X-R
Frekvensområde9 KHz - 7.5 GHz
Båndbredde (RBW)1 Hz - 3 MHz
Phase Noise< -98 dBc/Hz @ 1 GHz, 10 kHz offset
Total amplitude accuracy< 0.7 dB
DANL-165 dBm/Hz
