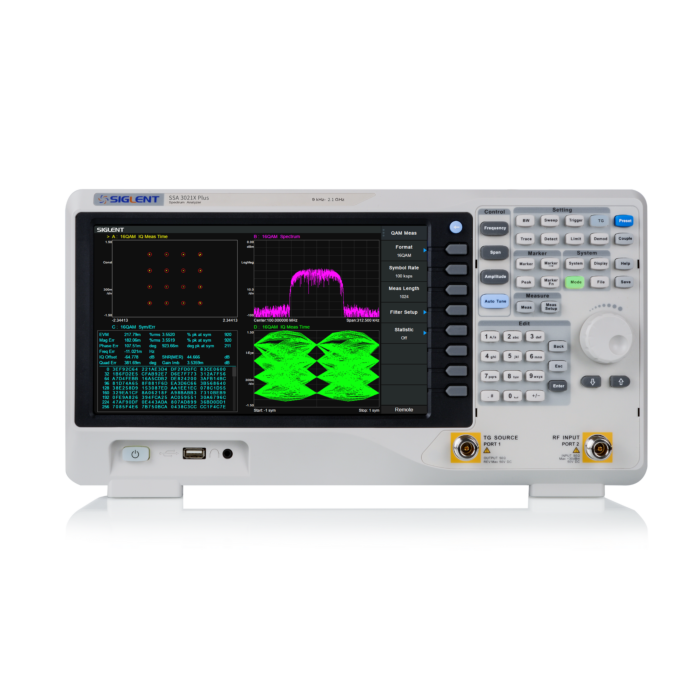

Siglent SSA3021X Plus 2.1GHz Spektrumanalysator
kr 22 095,00 kr 17 676,00
Varenummer
100277
The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis.
With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.
Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
Key Features
- Spectrum Analyzer Frequency Range from 9 kHz up to 2.1 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Preamplifier (incl. free of charge)
- Tracking Generator (incl. free of charge)
- Analog and Digital Signal Modulation Analysis Mode (Opt.)
- Reflection Measurement Kit (Opt.)
- EMI Filter and Quasi-Peak Detector Kit(Opt.)
- Advanced Measurement Kit (Opt.)
- 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
| Produsent | Siglent |
|---|---|
| Produktnr | SSA3021X Plus |
| Frekvensområde | 9 KHz - 2.1 GHz |
| Båndbredde (RBW) | 1 Hz - 1 MHz |
| Phase Noise | < -98 dBc/Hz @ 1 GHz, 10 kHz offset |
| Total amplitude accuracy | < 0.7 dB |
| DANL | -161 dBm/Hz |
