SIGLENT SPS6150X WIDE RANGE PROGRAMMABLE DC POWER SUPPLY

Overview

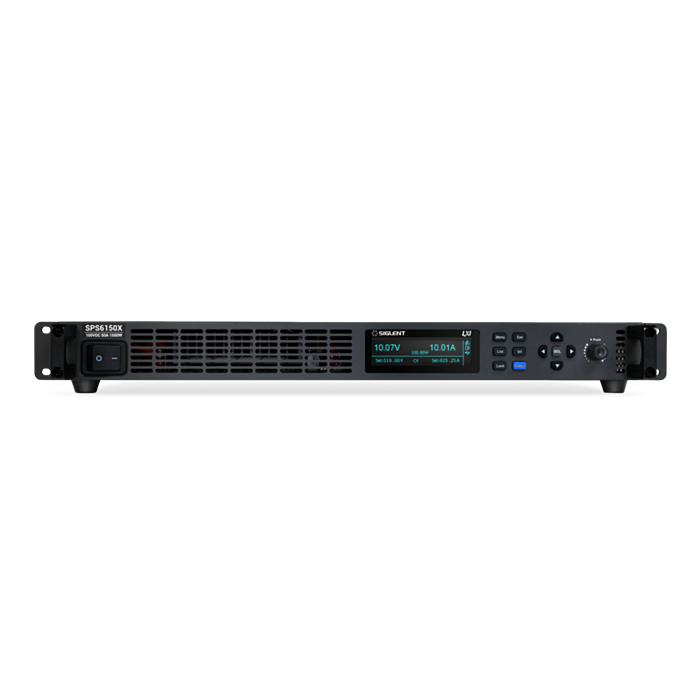

The Siglent SPS6150X is a premium-grade, highly efficient programmable switching DC power supply engineered to deliver single-channel, wide-range constant power up to 1500 W (1.5 kW). Housed in an ultra-compact 1U (44 mm) rack-mountable chassis, this power supply provides a rated output of up to 100 V and 50 A within its 1500 W limit.

Unlike traditional DC power supplies with a rigid rectangular output profile, the SPS6150X utilizes a wide-range constant power architecture. This allows it to automatically swap voltage and current ratios, delivering higher voltage at lower currents and higher current at lower voltages to maximize instrument utility. Equipped with a bright, 3.12-inch wide-angle OLED display, CV/CC priority configurations, customizable slew rates, and comprehensive protection modes, the SPS6150X is an indispensable tool for battery characterization, LED lighting tests, automotive electronics, and demanding R&D laboratories.

Product Features

Flexible Constant Power Output

Consolidate your bench space with a single power supply that behaves like multiple units. The SPS6150X’s wide-range output capability delivers up to 100 V or up to 50 A within its 1500 W limit, allowing you to test a massive variety of low-voltage/high-current or high-voltage/low-current devices under test (DUT).

Constant Voltage (CV) & Constant Current (CC) Priority Modes

Better protect sensitive components from current spikes and voltage overshoot. CC Priority mode starts the output path in constant current first—minimizing inrush spikes—which is critical for diode and LED testing. CV Priority mode ensures rapid voltage stabilization for high-speed automated testing.

Adjustable Output Voltage & Current Slew Rates

Configure customized rising and falling slopes (slew rates) for both voltage and current. This feature prevents high inrush currents from damaging capacitive DUTs during power-up or power-down transitions.

Flexible Capacity Expansion (Up to 7.5 kW)

Scale your testing capabilities as your projects grow. Connect up to five SPS6150X in parallel to extend total system output power up to an impressive 7500 W (7.5 kW) with high power density and absolute synchronization.

Intuitive List Sequence Programming

Easily create multi-step waveforms directly on the front panel or import pre-configured sequence files via USB. The List function supports up to 50 sequence steps with precise delay times down to 1 ms, enabling complex testing scenarios such as automotive power-bus simulations.

Safe Operations with Internal Discharge

Designed with a built-in parallel output discharge circuit. When the power supply is turned off or the load is disconnected, the system rapidly drains the charge stored inside the output filter capacitor, eliminating dangerous residual voltages at the terminal blocks.

Embedded Web Server & Rich Interfaces

Operate the instrument remotely without installing complex PC software. The built-in web server allows users to fully control, configure, and monitor the power supply over LAN from any standard web browser. The unit comes standard with USB Device, USB Host, LAN, and analog control ports, with an optional USB-GPIB module.

Technical Specifications

• Rated Output Voltage: 0 to 100 V

• Rated Output Current: 0 to 50 A

• Maximum Output Power: 1500 W (1.5 kW)

• Setting & Readback Resolution: 10 mV / 10 mA

• Constant Voltage (C.V.) Characteristics:

  • Line Regulation: 5 mV (90 to 132 Vac or 170 to 265 Vac, constant load)

  • Load Regulation: 50 mV (No load to full load, constant input voltage)

  • Output Ripple (pk-to-pk): 120 mV (at 220 Vac input)

  • Output Ripple (rms): 30 mV (at 220 Vac input)

  • Programming Accuracy: 0.1% of reading + 10 mV

  • Readback Accuracy: 0.1% of reading + 20 mV

  • Rise Time (Rated/No Load): 30 ms

  • Fall Time (Rated Load): 15 ms

• Constant Current (C.C.) Characteristics:

  • Line Regulation: 30 mA (90 to 132 Vac or 170 to 265 Vac, constant load)

  • Load Regulation: 50 mA (No load to full load, constant input voltage)

  • Output Ripple (rms): 40 mA

  • Programming Accuracy: 0.2% of reading + 30 mA

  • Readback Accuracy: 0.2% of reading + 40 mA

• Protection Functions:

  • Over-Voltage Protection (OVP): 10 V to 110 V

  • Over-Current Protection (OCP): 5.0 A to 55 A

  • Over-Temperature Protection (OTP): alarm and automatic output shut-off

  • Low AC Input Protection: automatic output shut-off

• Remote Sense: compensate lead resistance loss

• Parallel Capability: Up to 5 units of the same model

• Display Screen: 3.12-inch high-brightness OLED display (170-degree viewing angle)

• Connectivity Interfaces: USB Host, USB Device, LAN (LXI-C compliant), Analog Control Connector, optional USB-GPIB module

• Normal Rated Input : Single phase 100 Vac - 240 Vac 50 Hz - 60 Hz

• Power Factor (PF): 0.98 at 220 Vac; 0.99 at 90 Vac

• Physical Dimensions (W x H x D): 483 mm x 44 mm x 468 mm (Compact 1U height, standard 19-inch width)

• Weight: 10 kg
