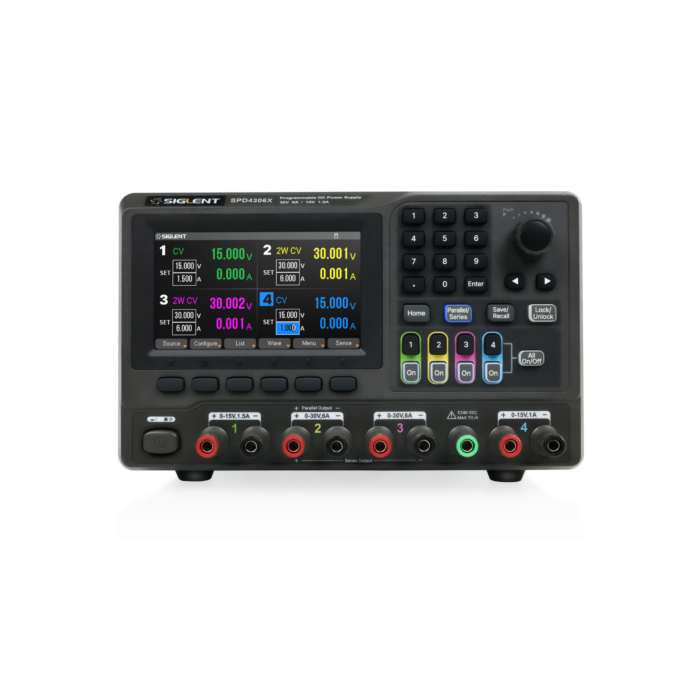

Siglent SPD4306X 400W 4-kanals strømforsyning, 1mV / 1mA oppløsning

kr 13 400,00 kr 10 720,00
Varenummer
101618
  • Four independent outputs
  • Rated output power: 400W
  • 5-digit voltage and current display with minimum resolution of 1mV, 1mA
  • Clear graphical interface with waveform and timer display modes
  • Support remote voltage compensation sense function

Nyhet, ta kontakt for leveringstid.

Siglent SPD4000X series programmable linear DC power supply is equipped with a 4.3-inch TFT-LCD display, friendly human-machine interface, and excellent performance indicators.

Real-time waveform display provides engineers with an informative user interface.

The SPD4000X series consists of three models with up to four independent outputs with rated output voltage values of 32V, 12V, or 30V and the total output power of 240W, 285W or 400W. The minimum resolution can be set to 1mV/1mA. The SPD4000X is equipped with overvoltage protection and overcurrent protection for device protection. Together, these capabilities make the SPD4000X a high precision, low noise, and highly reliable power solution suitable for use from production to research. The instrument is also equipped with LAN/USB communication interface and remote web page control function to meet different application scenarios.



Key Features

  • Rated output power: 400W
    • CH1: Voltage 0 to 15 V, Current 0 to 1,5 A
    • CH2: Voltage 0 to 30 V, Current 0 to 6 A
    • CH3: Voltage 0 to 30 V, Current 0 to 6 A
    • CH4: Voltage 0 to 15 V, Current 0 to 1 A
  • Setting Accuracy: Voltage:±(0.03% of reading+10) mV, Current:±(0.3% of reading+10) mA
  • Readback Accuracy: Voltage:±(0.03% of reading+10) mV, Current:±(0.3% of reading+10) mA
  • Up to four high-precision power supplies with independent controllable outputs, supporting CH2 and CH3 series and parallel connections
  • Clear graphical interface with waveform and timer display modes
  • 5-digit voltage and current display with minimum resolution of 1mV, 1mA
  • Fast output response time: < 50us
  • The high current channel support remote voltage compensation sense function. The maximum compensation voltage is 0.6V
  • Overvoltage protection and overcurrent protection or safe and accurate operation
  • Equipped with a 4.3-inch TFT-LCD display (480*272 resolution)
  • USB and LAN standard communication
  • USB-GPIB module is optional
  • Excellent channel density with up to 4 channels in a 3U half rack package
  • Internal data storage for setups and parameters
  • Embedded Web Server with instrument communication that doesn’t require software installation
  • Fully SCPI programming command set support as well as a LabView driver for remote control and system automation

Last ned datablad for Siglent SPD4000X series

Mer informasjon
ProdusentSiglent
ProduktnrSPD4306X
Kanaler4
Effekt400W
Oppløsning1mV / 1mA
ProgrammerbarJa
LABView driverJa
Serie-modusJa
Parallell-modusJa
