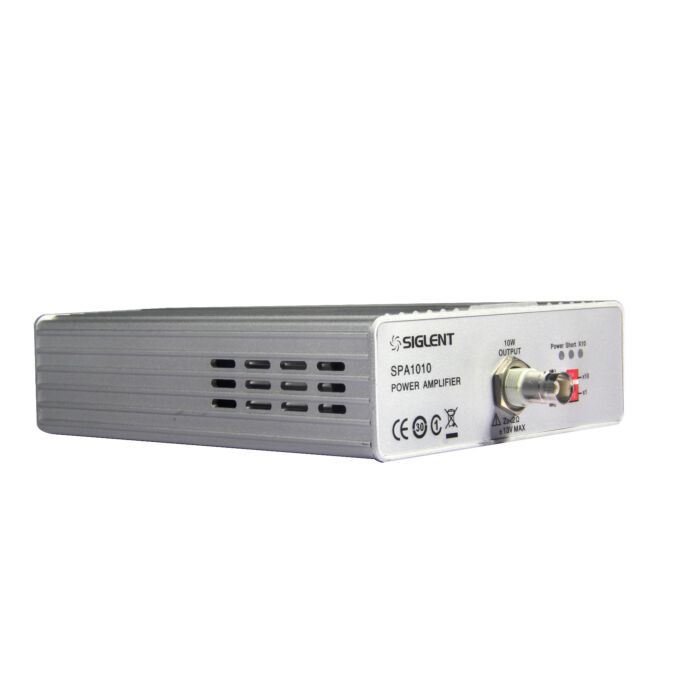

Siglent SPA1010 10W forsterker for Signalgeneratorer

Increase the voltage and current output capabilities to generators like the SIGLENT SDG family.

Typical Input Impedance: 15kΩ

Input:

+/- 6.5V Vpp (Gain: X1)

+/- 1.3 V (Gain: X10)

Gain: Switched 10V/1V and 10V/10V

Output Voltage: 25.4 Vpp (input: Sine, 1kHz,RL=8Ω）

Output Current: 1.12 A (input: Sine, 1kHz,RL=8Ω）

Slew Rate: ≥ 90 V/μs

Overshoot: ≤ 4%.

Download Siglent SPA1010 user manual / Datasheet
