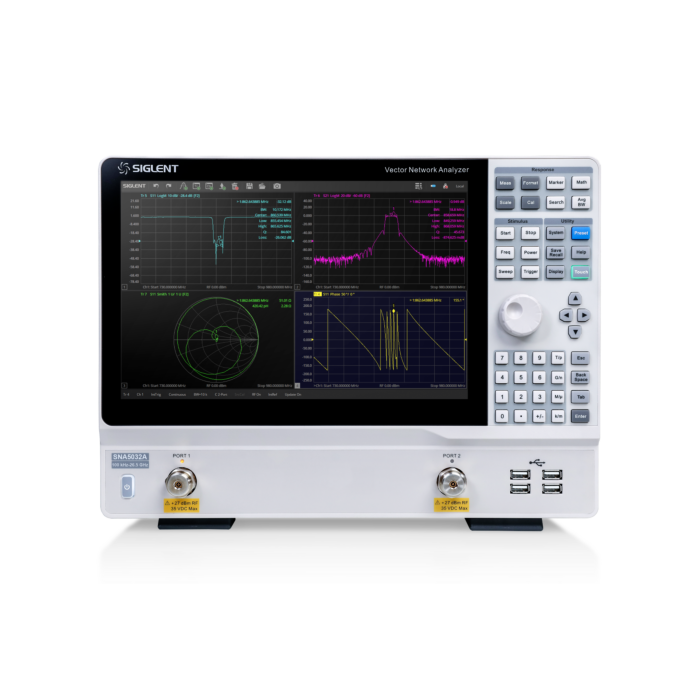

Siglent SNA5032A 26,5 GHz, 2 ports Vector Network Analyzer

kr 436 160,00 kr 348 928,00


The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range of 9 kHz to 8.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and time-domain parameter measurements.

The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments.

The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode.

The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.


Key Features
Frequency range: 100 kHz – 26.5 GHz
Frequency resolution: 1 Hz
Level resolution: 0.05 dB
Range of IFBW: 10 Hz~3 MHz
Setting range of output level:
-55 dBm ~ +10 dBm
Dynamic range: 125 dB
Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement
Internal Bias-Tee connections
Interface: LAN, USB Device, USB Host (USB-GPIB)
Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
1-inch touch screen
Video output: HDMI


Download Siglent SNA5000A Datasheet

Mer informasjon
Frekvensområde100 kHz - 26.5 GHz
