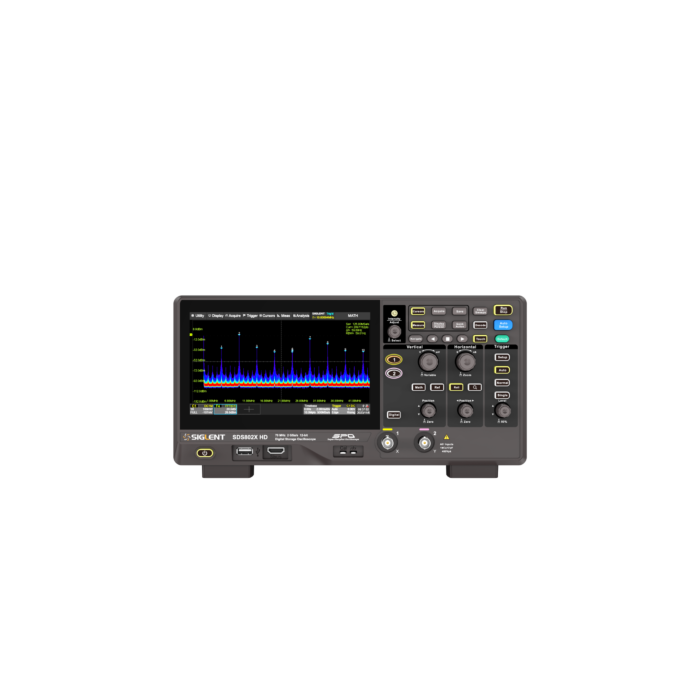

Siglent SDS802X HD 12-Bit 70MHz 2-kanals oscilloskop

kr 5 370,00 kr 4 296,00
Varenummer
101581
  • 70 MHz bandwidth
  • 12-bit high resolution
  • Real-time sampling rate up to 2 GSa/s
  • Memory depth up to 50 Mpts.
  • Waveform capture rate up to 500,000 wfm/s (Sequence mode)
  • 7-inch touch screen, support for external mouse and keyboard

Noe begrenset tilgjengelighet, ubekreftet levering medio mai (2-kanaler medio Juni.), legg inn bestilling for å sikre ditt oscilloskop.

Vi har nå følgende modeller på lager for omgående levering.

SDS804X HD

SDS814X HD

SDS824X HD



SIGLENT’s SDS800X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance.

They are available in bandwidths of 200 MHz, 100 MHz and 70MHz, have maximum record length of 100 Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS800X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS800X HD.

The 7″ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.



Key Features

  • 12-bit High Resolution
    • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
    • Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
  • 2/4 analog channels with up to 200 MHz bandwidth
  • SPO technologyWaveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
    Supports 256-level intensity grading and color temperature display modes
    Up to 100 Mpts record length
    Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time.
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames.
  • Automatic measurements on 50+ parameters, supports statistics with  histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
  • 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
  • Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis.
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional)
  • 25 MHz waveform generator(optional)
  • 7″ TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures.
  • Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out.
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP.

Last ned datablad for Siglent SDS800X HD series

Mer informasjon
ProdusentSiglent
ProduktnrSDS802X HD
Båndbredde70 MHz
Capture rate80,000 wfms/s, Sequence mode up to 500,000 wfm/s
Samplingshastighet2 GSa/s (single channel), 1 GSa/s (2 channels)
Kanaler2
Resolution12-Bit
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
