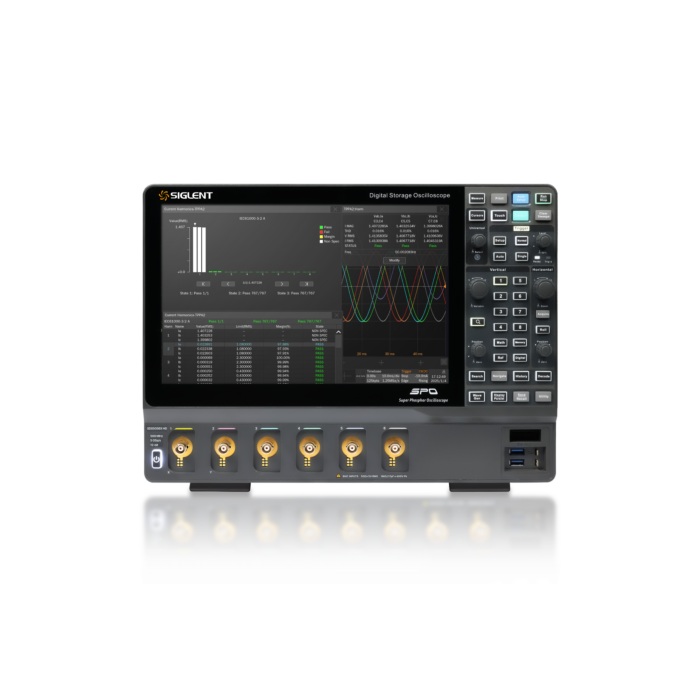

Siglent SDS5056X HD 12-Bit 500 MHz 6-kanals oscilloskop

Key Features

• 6 analog channels, 16 digital channels (Probe optional)
• 500MHz bandwidth, upgradable up to 1 GHz
• Up to 5 GSa/s sample rate
• 12-bit ADC
• Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
• SPO technology
  Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
  Supports 256-level intensity grading and color temperature display modes
  Up to 2.5 Gpts/ch waveform length
  Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 170,000 frames
• Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces
• 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test
• High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• External 50 MHz waveform generator supported
• Large 12.1” TFT-LCD display with 1280 * 800 resolution; Capacitive touch screen supports multi-touch gestures
• Interfaces include: 2x USB Host 3.0, USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out
• Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard

Download datasheet for SDS5000X HD
