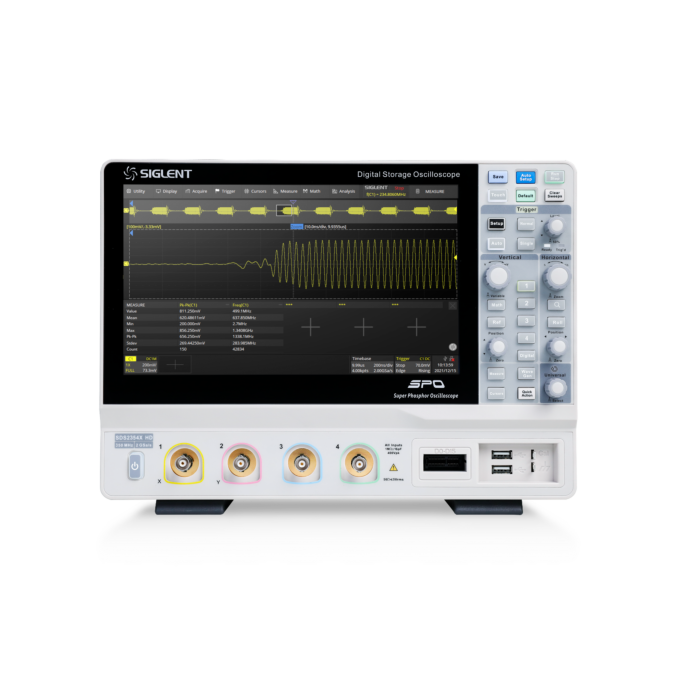

Siglent SDS2204X HD 12-Bit 200MHz 4-kanals oscilloskop

kr 33 770,00 kr 27 016,00
Varenummer
101109

High performance and cost effective 12-Bit high resolution oscilloscope, shows you more details and less noise on the waveform.

The SDS2000X HD series employs Siglent’s SPO technology
with a maximum waveform capture rate of up to 100,000 wfm/
s in normal mode, and up to 500,000 wfm/s in Sequence mode, 256-
level intensity grading display and a colour temperature
display. It also employs an innovative digital trigger
system with high sensitivity and low jitter. The trigger system
supports multiple powerful triggering modes including serial
bus triggering.
Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Histogram allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS2000X HD.

The large 10.1’’ capacitive touch screen supports multitouch gestures, with the addition of user-friendly UI  it can greatly improve the operation efficiency,  it also supports mouse andkeyboard control, and remote web control over LAN.

Download Siglent SDS2000X HD Datasheet



  • 2 pcs. 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s.
  • Front ends with 70 μVrms noise floor @ 500 MHz bandwidth and 0.5% DC gain accuracy
  • 4 analog channels.
  • Bandwidth upgradable to 350MHz, 500MHz for 2 channels.
  • SPO technology
  • Waveform capture rate up to 100,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and colour temperature display mode.
  • Up to 200 Mpts/ch record length
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt,
    Interval, Dropout, Pattern, Qualified, Nth edge,
    Setup/hold, Delay and Video (HDTV supported). Zone
    Trigger simplifies advanced triggering
    Serial bus triggering and decoder, supports protocols I
    2C,
    SPI, UART, CAN, LIN, CAN FD, FlexRay, I
    2S, MIL-STD-
    1553B, SENT and Manchester
  • Segmented acquisition (Sequence) mode, dividing the
    maximum record length into multiple segments (up to
    80,000), according to trigger conditions set by the user,
    with a very small dead time between segments to capture
    the qualifying event
  • History waveform record (History) function, the maximum
    recorded waveform length is 80,000 frames
  • Automatic measurements on 50+ parameters, supports
    statistics with histogram, track, trend, Gating
    measurement, and measurements on Math, History and
    Ref
  • 2 Math traces (2 Mpts FFT, addition, subtraction,
    multiplication, division, integration, differential, square
    root, etc.), supports formula editor
  • Rich data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis.
  • High Speed hardware-based Average, ERES; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks.
  • 16 digital channels (optional)
  • Built-in 25 MHz waveform generator(Option)
  • Large 10.1” TFT-LCD display with 1024 * 600 resolution, Capacitive touch screen supports multi-touch gestures
  • Interfaces include: USB Hosts, USB Device (USBTMC),
    LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out.
  • Built-in web server supports remote control using a web browser, Supports SCPI remote control commands.
  • Supports external mouse and keyboard control.
Mer informasjon
ProdusentSiglent
ProduktnrSDS2204X HD
Båndbredde200 MHz
Capture rate100,000 wfm/s, Sequence mode up to 500,000 wfm/s
Samplingshastighet2 GSa/s
Kanaler4
Resolution12-Bit
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
