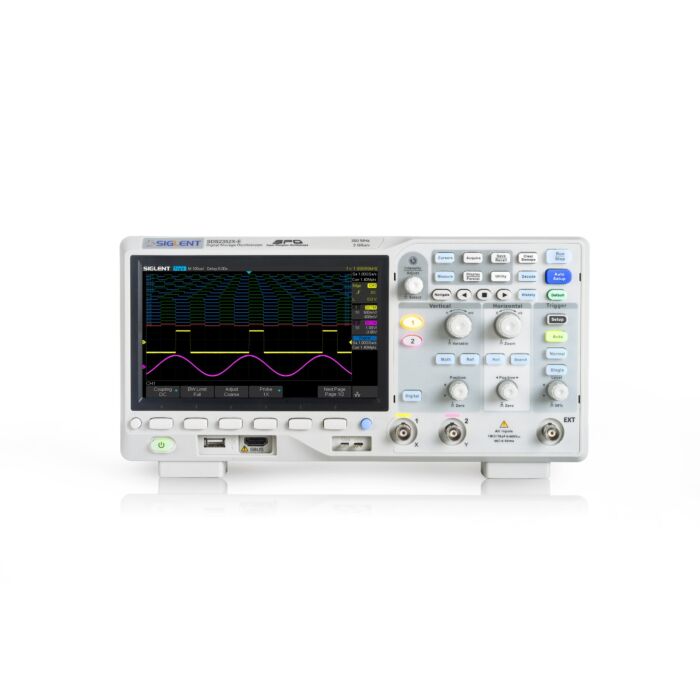

Siglent SDS2202X-E 200MHz 2-kanals oscilloskop

kr 8 170,00 kr 6 536,00
Varenummer
100264
  • 200MHz bandwidth
  • Real-time sampling rate up to 2 GSa/s
  • The newest generation of SPO technology
  • Waveform capture rate up to 110,000 wfm/s (normal mode), and
    400,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color display modes
  • 7-inch TFT-LCD display and 10 one-button menus
  • Record length up to 28 Mpts
  • Digital trigger system
  • Bode plot
  • Intelligent triggers:Edge, Slope, Pulse Width, Window, Runt, Interval,Time out (Dropout), Pattern
  • Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
  • Low background noise with voltage scales from 500 μV/div to 10 V/div
  • 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
  • History waveform record (history) function (maximum recorded waveform length is 80,000 frames)
  • 1 Mpt FFT
  • Math and measurement functions use all sampled data points in memory (up to 28 Mpts)
  • Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
  • Large 7 inch TFT -LCD display with 800 * 480 resolution
  • Supports Multi-language display and embedded online help

SIGLENT SDS2000X-E Series Super Phosphor Oscilloscopes are available in two bandwidths; 200 MHz and 350 MHz. They each have a maximum sampling rate of 2 GSa/s and a standard record length of 28 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent’s newest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Also included is the deep memory FFT. This math function uses upto 1 M samples for the FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all of 28M sample points so that there is minimal distortion on analysis. It also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for wireless control and monitoring (option), and an embedded application that allows remote control via web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.

Mer informasjon
ProdusentSiglent
ProduktnrSDS2202X-E
Båndbredde200 MHz
Capture rate110,000 wfms/s
Samplingshastighet2 GSa/s
Kanaler2
