SIGLENT SDM4065A-SC 6.5-DIGIT DIGITAL MULTIMETER WITH SCANNER

Overview

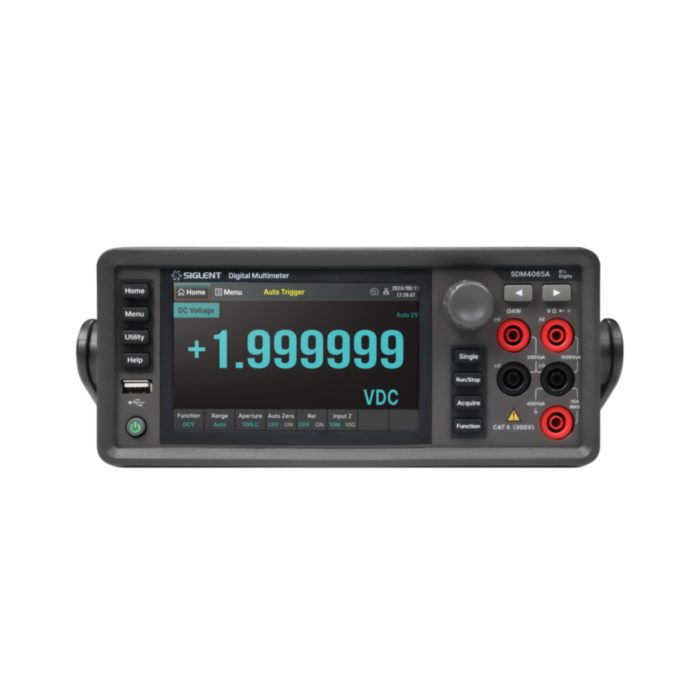

The Siglent SDM4065A-SC is a premium-grade, high-precision 6.5-digit (2,200,000 count) benchtop digital multimeter integrated with a 16-channel multiplexer scanner card (SC1016). Engineered to meet the most demanding requirements for high-accuracy, multi-point, and automated measurement systems, this instrument combines a wide array of mathematical functions with an exceptional 5-inch TFT-LCD capacitive touch screen.

By incorporating the SC1016 scanner card natively, the SDM4065A-SC transforms from a standard benchtop multimeter into a versatile, high-speed data acquisition system. This system is ideal for component characterization, environmental burn-in testing, quality control, and production-line testing. With an extreme reading rate of up to 50,000 rdgs/s, an integrated 50 kSa/s digitizing function, and a modern, user-friendly UI, the SDM4065A-SC delivers deep measurement insights without compromising on setup speed or complexity.

Product Features

Real 6.5-Digit Resolution & 35 ppm Accuracy

Equipped with a true 2,200,000 count reading resolution and a basic DC voltage accuracy of 35 ppm (0.0035% of reading + 0.0006% of range). It ensures pristine, highly dependable, and repeatable measurements for sensitive analog circuits, calibration tasks, and high-spec components.

Integrated 16-Channel SC1016 Scanner Card

The included SC1016 multiplexer scanner card provides 12 multi-purpose channels and 4 dedicated current channels. It supports a comprehensive range of configurations—including 2-wire and 4-wire resistance, DCV, ACV, DCI, ACI, capacitance, frequency, diode, continuity, and temperature measurements (RTD/Thermocouple)—allowing you to monitor multiple test points simultaneously.

High-Speed Digitize Function

Features an integrated digitizer with a sample rate of up to 50 kSa/s and a 10 kHz bandwidth. This function allows engineers to acquire up to 2 million points in a single acquisition run, making it ideal for capturing transient signals, fast power-up behaviors, and dynamic current profiles.

5-inch Touch Display & Multiple Visualization Modes

Featuring an 800x480 resolution capacitive touch display paired with an intuitive UI. View your data across four distinct display modes: traditional numerical values, a real-time bar meter, dynamic trend charts, or detailed histograms to quickly evaluate signal distribution and spot drift patterns.

Advanced Data Logging & Generous Memory

Configure custom data logging sessions with sample intervals ranging from 1 ms to 3600 s for up to 100 hours of continuous logging. Save up to 2 million readings directly to the onboard cache memory (512MB RAM with timestamp support) or up to 360 million points directly to internal files (256MB Nand Flash).

Complete Interface Suite & Remote Access

Equipped with standard USB Device, USB Host, and LAN interfaces, with an optional USB-GPIB adapter. It offers native remote access support for VNC servers and web browsers, as well as full compatibility with Siglent's EasyDMM-X host computer control and sampling software.

Technical Specifications

• Measurement Resolution: 6.5 digits (2,200,000 counts)

• Basic DCV Accuracy (1 Year): +/- (0.0035% of reading + 0.0006% of range)

• Max. Reading Rate: 50,000 rdgs/s (at 0.001 NPLC)

• High-Speed Digitize Function: Sample rate up to 50 kSa/s with a -3dB analog bandwidth of 10 kHz

• Onboard Memory: 512MB RAM (holds up to 2,000,000 readings with timestamp)

• File Storage Memory: 256MB Nand Flash (for config files, readings, and image data)

• DC Voltage Range: 200 mV to 1000 V

• True-RMS AC Voltage Range: 200 mV to 750 V (Frequency range: 3 Hz to 300 kHz)

• DC Current Range: 200 uA to 10 A (supports auto-switching between 10A high current and 3A low current modes)

• True-RMS AC Current Range: 200 uA to 10 A (Frequency range: 3 Hz to 10 kHz)

• Resistance Range: 200 Ohm to 100 MOhm (supports both 2-wire and 4-wire configurations)

• Capacitance Range: 2 nF to 100 mF

• Frequency / Period Range: 3 Hz to 1 MHz

• Temperature Sensors Supported: RTD (R0 within 4.9 Ohm to 2.1 kOhm, -200 to 660 deg C), Thermocouple (B, E, J, K, N, R, S, T)

• Scanner Card Channel Capabilities: * 12 Multi-purpose Channels (CH1 to CH12) supporting DCV, ACV, 2WR, 4WR, CAP, Diode, Continuity, Frequency, and Temperatur

  • 4 Dedicated Current Channels (CH13 to CH16) supporting DCI and ACI (2A max range)

  • Scanner Max. AC Voltage: 125 Vrms or 175 V peak, 100 kHz, 0.3 A Switched

  • Maximum Switching Voltage: 250 VAC / 220 VDC
  • Maximum Switching Power: 62.5VA / 30 W

  • Scanner Channel-to-Channel Switching Time: 280 ms (typical

• Display: 5"  TFT-LCD touch screen (800x480 resolution, 24-bit color)

• Connectivity Interfaces: USB Device, USB Host (front/rear panel), LAN (10/100 Base-T, LXI-C compliant), External Trigger Input, BNC VMC Output

• Power Supply: AC 100-120 V / 200-240 V (45 Hz to 66 Hz), 30 VA max consumption

• Dimensions (L x W x H): 379 mm x 260 mm x 103 mm

• Weight: 3.8 kg

Download Siglent SDM4065A-SC datasheet.
