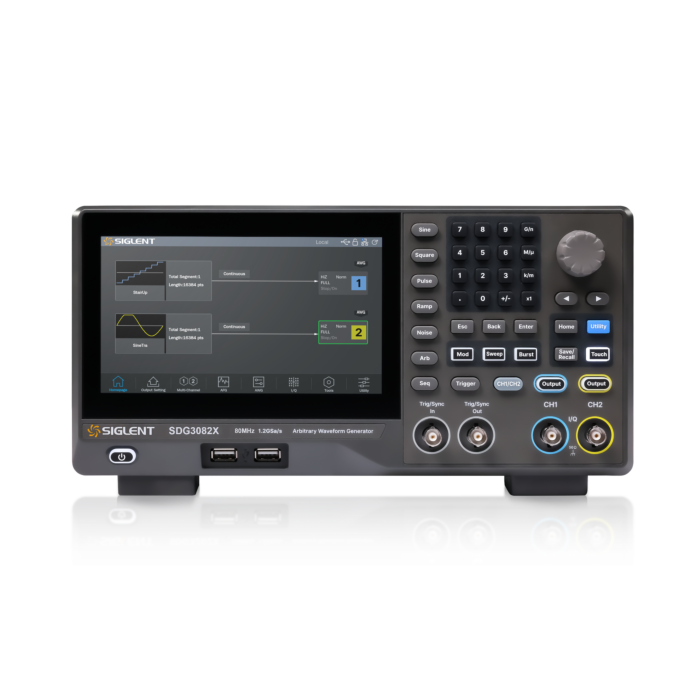

Siglent SDG3082X 80MHz 2-kanals signalgenerator

The Siglent SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs

Key Features

• Dual channels, maximum output frequency 80 MHz, maximum output amplitude 20 Vpp
• 1.2 GSa/s sampling rate, 16-bit vertical resolution
• Arbitrary waveform lenght 20 Mpts/ch. (40 Mpts optional)
• TrueArb technology, arbitrary waveforms can be output point by point. Under the premise of not losing waveform details, low-jitter waveforms can beoutput at a sampling rate of 10 mSa/s ~ 600 MSa/s
• Sequence wave playback function, with a maximum waveform memory of 20 Mpts per channel (40 Mpts optional)
• EasyPulse technology, low-jitters square waves/pulses, and the pulse wave can achieve fine adjustment of pulse width, rising/falling edges, with extremely high adjustment resolution and adjustment range
• Supports dual pulse output function, which can beused to measure the switching parameters of power devices and evaluate their dynamic characteristics
• PRBS up to 120 Mbps
• Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
• Sweep and Burst functions
• Harmonic function
• Waveform Combining function
• High precision Frequency Counter
• 196 built-in arbitrary waveforms
• Standard interfaces: USB Host, USB Device(USBTMC), LAN (VXI-11); optional GPIB
• Built-in WebServer supports instrument control via web browser
• Vector signal (Optional) 50 MS/s max symbol rate; Includes modulation modes such as ASK, PSK, FSK and QAM.
• Can be used as a noise generator/harmonic generator/IQ signal generator
• SigIQPro software provides vector signal creation and editing
• 7-inch 1024×600 high-resolution display touch screen
