RIGOL RSA800-EMI MEASUREMENT SOFTWARE

Overview

The RIGOL RSA800-EMI is an advanced EMI Measurement application option designed to expand the capabilities of the RSA800 Series Real-Time Spectrum Analyzers. This module transforms the analyzer into a powerful pre-compliance testing tool, enabling engineers to evaluate electromagnetic interference and ensure product compliance early in the design cycle.

With built-in CISPR 16-1-1 detectors and bandwidths, the RSA800-EMI simplifies complex EMC testing workflows. It offers a comprehensive suite of diagnostic features, including scan tables , simultaneous detectors , and automatic limit testing, allowing users to quickly identify and resolve EMI issues before formal lab certification.

Product Features

Standard-Compliant Detectors

Fully equipped with CISPR 16-1-1 compliant detectors , including positive-peak, negative-peak, average, quasi-peak, EMI average, and RMS average, to ensure accurate and standardized interference measurements.

Advanced Diagnostics & Visualization

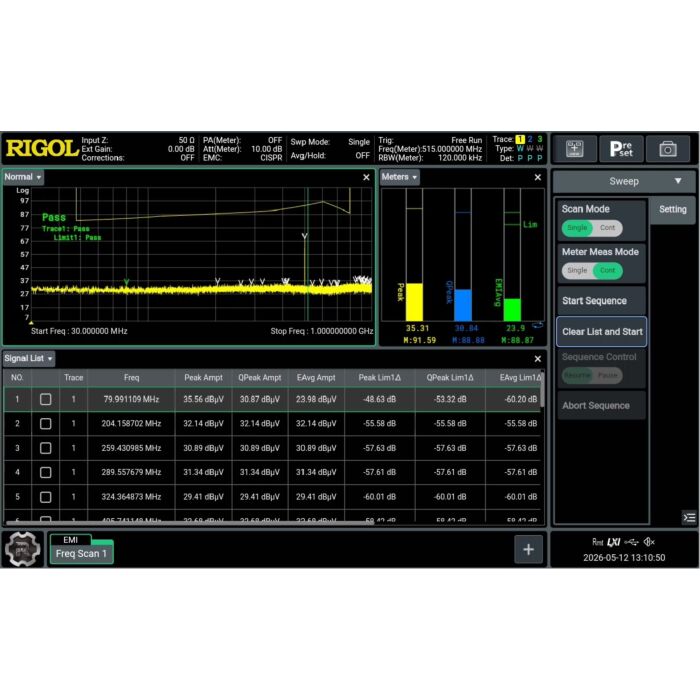

Features log and linear displays, detailed signal lists, and scan tables. Users can run simultaneous detectors to analyze emissions comprehensively and correlate data efficiently.

Automated Limit Testing

Streamline your workflow with automatic limit testing, measure-at-marker functionality, and precise "delta to limit" calculations to quickly determine pass/fail status.

Built-in Report Generation

Effortlessly document your findings with the built-in report generation tool, providing clear and actionable compliance data directly from the instrument.

Technical Specifications

• EMI Resolution Bandwidth (-3 dB): 100 Hz to 10 MHz, in 1-3-10 sequence

• EMI Resolution Bandwidth (-6 dB): 200 Hz, 9 kHz, 120 kHz, 1 MHz

• EMI Detectors: Positive-peak, negative-peak, average, quasi-peak, EMI average, and RMS average

• Key Features: CISPR 16-1-1 bandwidths, log and linear display, signal list, scan table, simultaneous detectors

• Analysis Tools: Automatic limit testing, measure at marker, delta to limit, report generation
